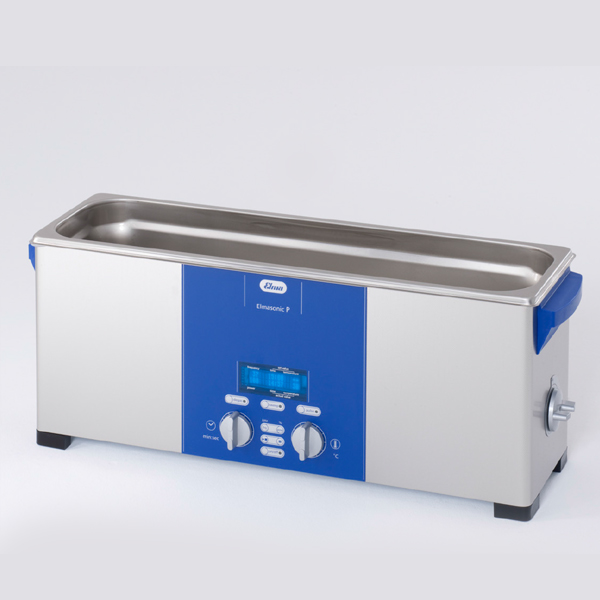

Elma P 70 H Ultrasonic Cleaners

Mains voltage (Vac): 230V

Ultrasonic frequency (kHz) 37 / 80

Power consumption total P 70 H (W) 970

Ultrasonic power effective (W) 220

Ultrasonic peak performance max.(W) 880

Heating power (W) 750

Unit outer dimensions W/D/H (mm) 568 / 179 / 221

Tank internal dimensions W/D/H (mm) 505 / 137 / 100

Basket internal dimensions W/D/H (mm) 465 / 106 / 50

Max. filling volume tank (lit.) 6.9

Elma Order Nos.

Elmasonic P 70 H (220-240 V) 101 3735

Elmasonic P 70 H (115-120 V) 103 3325

Basket stainless steel 100 4247

Cover (plastic) 100 3283

Further accessories on request

Weight (kg) 5.6

Material tank stainless steel V2A

Material casing stainless steel V2A

Drain 3/8“

CE-compliant √

Protection class IP 20

Sound pressure level (LpAU) * (dB) <70

Ultrasonic sound level (LpZ) ** (dB) <105
