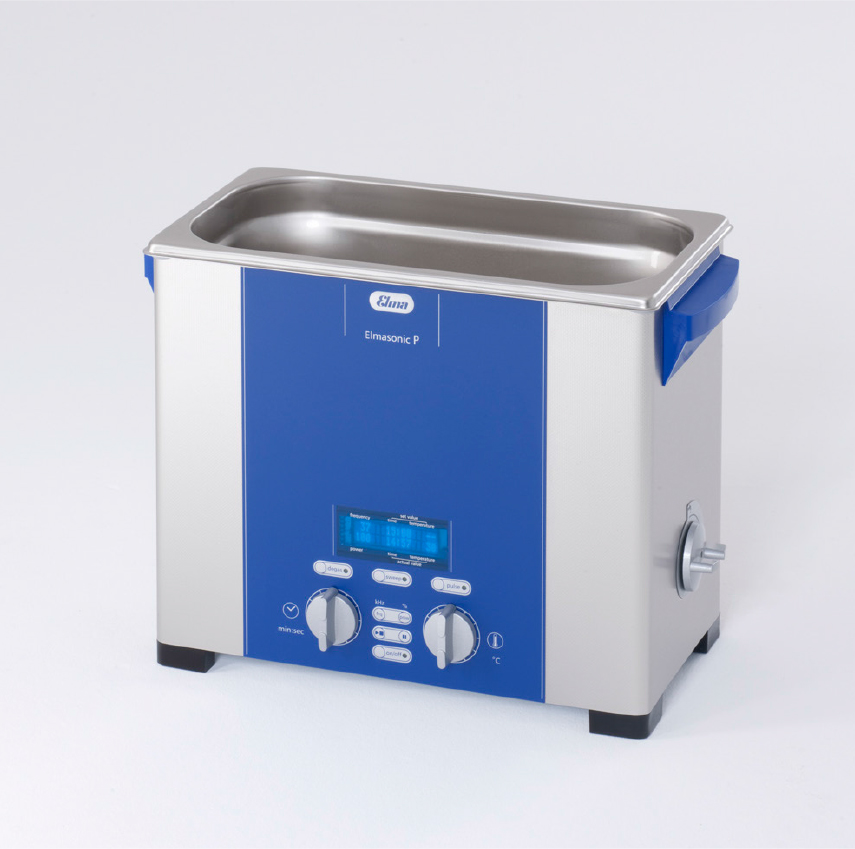

Elma P 60 H Ultrasonic Cleaners

Mains voltage (Vac) 115-120 V/220-240 V

Ultrasonic frequency (kHz) 37 / 80

Power consumption total P 60 H (W) 680 / 650

Ultrasonic power effective (W) 180 / 150

Ultrasonic peak performance max.(W) 720 / 600

Heating power (W) 500

Unit outer dimensions W/D/H (mm) 365 / 186 / 271

Tank internal dimensions W/D/H (mm) 300 / 151 / 150

Basket internal dimensions W/D/H (mm) 255 / 115 / 75

Elma Order Nos.

Elmasonic P 60 H (220-240 V) 101 3761

Elmasonic P 60 H (115-120 V) 103 3240

Basket stainless steel 100 4243

Cover (plastic) 100 3282

Further accessories on request

Max. filling volume tank (lit.) 5.75

Weight (kg) 5.1

Material tank Edelstahl V2A

Material casing Edelstahl V2A

Drain 3/8“

CE-compliant √

Protection class IP 20

Sound pressure level (LpAU) * (dB) <70

Ultrasonic sound level (LpZ) ** (dB) <105
