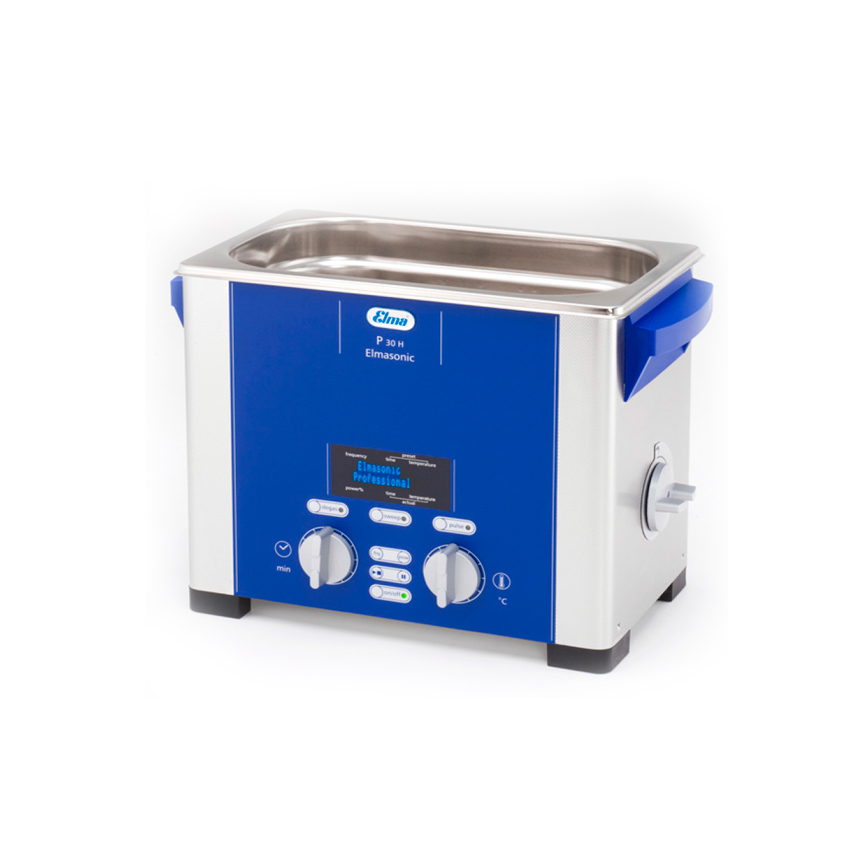

Elma P 30 H Ultrasonic Cleaners

Mains voltage (Vac) 115-120 V/220-240 V

Ultrasonic frequency (kHz) 37 / 80

Power consumption total P 30 H (W) 370 / 350

Ultrasonic power effective (W) 120 / 100

Ultrasonic peak performance max.(W) 480 / 400

Heating power (W) 250

Unit outer dimensions W/D/H (mm) 300 / 179 / 221

Tank internal dimensions W/D/H (mm) 240 / 137 / 100

Basket internal dimensions W/D/H (mm) 198 / 106 / 50

Max. filling volume tank (lit.) 2.75

Elma Order Nos.

Elmasonic P 30 H (220-240 V) 101 3737

Elmasonic P 30 H (115-120 V) 103 3218

Basket stainless steel 100 4176

Cover (plastic) 100 3281

Further accessories on request

Weight (kg) 3.3

Material tank stainless steel V2A

Material casing stainless steel V2A

Drain 3/8“

CE-compliant √

Protection class IP 20

Sound pressure level (LpAU) * (dB) <70

Ultrasonic sound level (LpZ) ** (dB) <105
