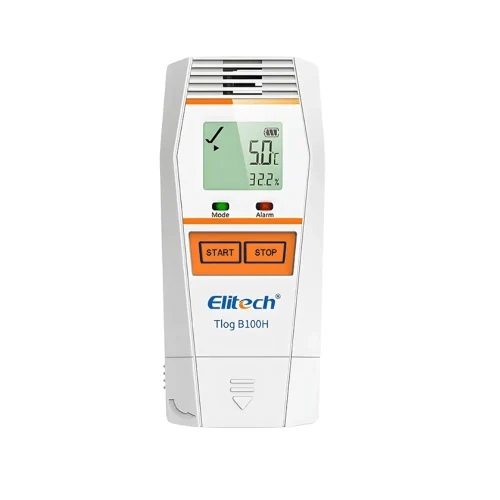

Elitech Tlog B100H Temperature and Humidity Data Logger (-30℃~70℃, 0%~90%RH)

Temperature

Range: -30°C to 70°C

Accuracy: ±0.3°C (-20 to 40°C); ±0.5°C (others)

Resolution: 0.1°C

Humidity

Range: 10% to 90% RH

Accuracy: ±3% RH (25°C, 20% to 80% RH); ±5% RH (others)

Resolution: 0.1% RH

IP Rating

Protection level: IP65

Logger by Software

Compatible with Mac or Windows

Interval: 10 seconds to 24 hours (default 10 minutes)

Capacity: 32,000 points (max)

Start mode: Button or software

Stop mode: Button, software, or stop when full

Alarm

Type: Single, cumulative

Thresholds: Temperature: up to 3 high limits and 2 low limits; Humidity: 1 high limit and 1 low limit

Alarm delay: 10 seconds to 24 hours

Data Interface

USB, Bluetooth

Data export: PDF report, software/app Excel report

Power by Battery

1 × 3.0V disposable lithium battery CR2450

Battery life

2 years for storage and use; cumulatively 180 days at 10-minute logging interval and 25°C (Bluetooth off)

Dimensions

Size: 115.5 × 47 × 16.2 mm

Weight: 70 g (battery excluded)

Package includes

1 × Tlog-B100H datalogger

1 × Certificate of calibration from Elitech

1 × User manual

1 × 3.0V lithium battery

Datasheet
