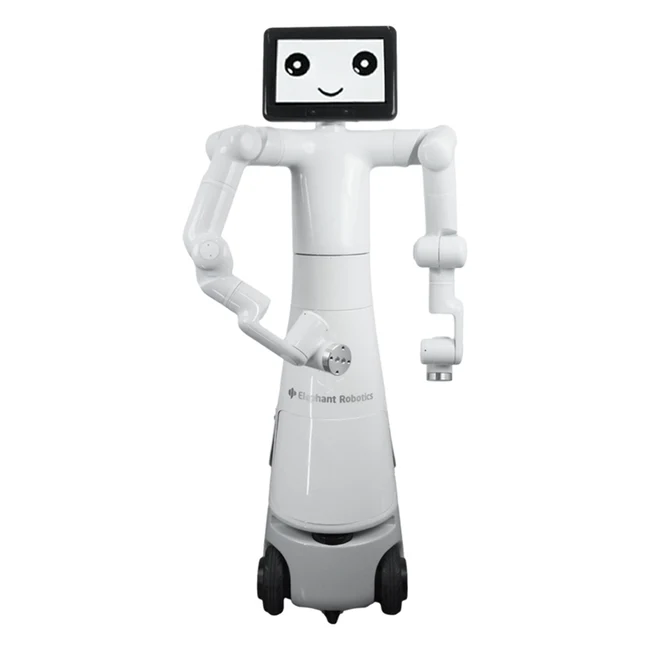

Elephant Robotics Mercury X1 Universal Wheeled Humanoid Robot

Product size: 1.18m

Working voltage: 24V

Degree of freedom: 19DOF

Maximum battery life: 8h

Maximum load: 1KG

Net weight: 20KG

Repeatability: ± 0.05mm

Drive motor: High performance direct drive motors

Maximum operating speed: 1.2m/s

Maximum climbing angle: 15°

Storage space: 15L

Master module arithmetic: 6-Core Arm v8.2 64-bit CPU，384-Core Volta™ GPU

Master AI Performance: 21 TOPS

Master module arithmetic: 4-Core ARM Cortex-A57 CPU

Wheeled chassis master: 128 NVIDIA CUDA® cores

Screen: 9-inch Touching Screen

Mobile chassis sensors: LIDAR, Ultrasonic Radar, 2D Vision

3D Camera: Orbbec Deeyea

Microphone: Line array 4 microphones，5m 180° pickup

IO: 24V 6 Input, 6 Output

Communication: CAN Bus/WIFI/Network port/Bluetooth/USB serial port
