Light Tube:
Tube Type: Sealed tube
Tube Voltage: 90 kV
Tube Current: 200 μA
Focus Size: 5 μm
Cooling Method: Air cooling
Flat Panel Detector:
Pixel Size: 85 μm
Pixel Matrix: 1536 × 1536
Effective Imaging Area: 130 × 130 mm
Fps / Rate: 20
Number of A/D Bits: 16 bit
Feature:

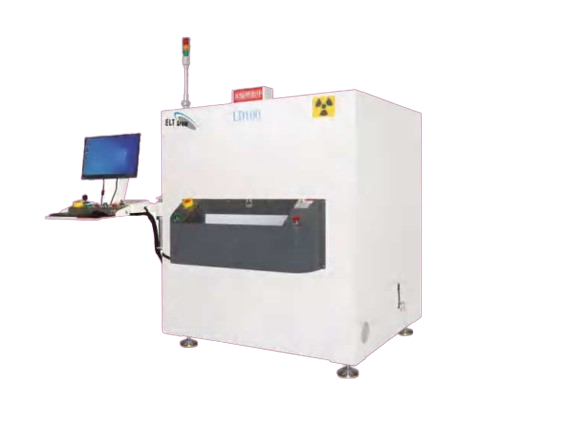

The device is used for semi-automatic online detection of the pole ear shape of power battery, and detects the pole ear shape by directly viewing the projected image of the battery end.
- Performance: off-line manual/semi-automatic detection;
- Automatic entry and exit of testing table, convenient loading and unloading;
- Built-in horizontal 360° rotating platform, can detect the four corners of the battery;
- Can detect the maximum battery size 500 × 200 × 200 mm;
- Measurement method: automatic measurement, automatic capture of measurement area, automatic navigation, automatic discrimination, manual setting of measurement area after automatic capture.
