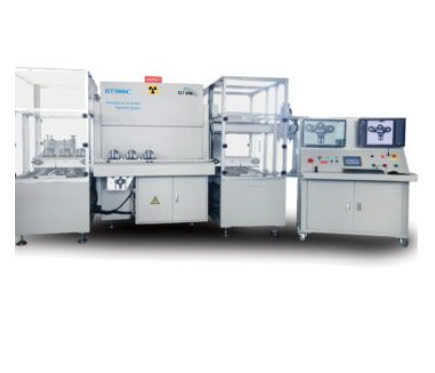

Electronicstalk HT5000C Casting X-ray Inspection (157mm*157mm)

X Tube

Tube Style: Sealed Tube

Tube Voltage: 130KV

Detail Resolution: 3um

Cooling mode: Air Cooling

Geometry Magnification Time: 320X

Flat Panel Detector

Effective Area: 157mm*157mm

Pixel Size: 154um

A/D Change: 16Bit

Sample Table

Axis X: 400mm

Axis Y: 300mm

Axis R: 60°

Maximum bearing capacity: 20KG

Radiation safety

The Machine Surface is less than 1usv/h: <1usv/h

Safety door automatic interlock protection function: When the X-ray is turned on, the safety door automatically locks for protection

Radiation door: Manual Button On and Off

X-Ray subject

Size: L1450mm*W1400mm*H1600mm

Weight: about 2000kg

Power

Power Supply: AC220VAC,50/60Hz

Applications:

Comprehensive inspection and testing of cast components

Ensures structural integrity and quality performance

Detection of internal defects in casting materials

Verification of dimensional accuracy and consistency
