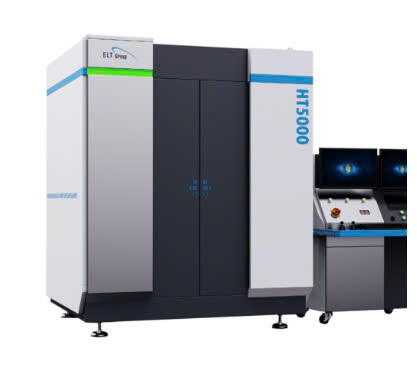

Electronicstalk HT5000 Casting X-ray Inspection (432mm*432mm, 80x500x500mm)

X–Ray Tube

Tube Style: Sealed Tube

Tube Voltage: 160KV

Tube Current: 2.5mA

Optical Tube Power: 400W

Detail Resolution: 0.4mm

Cooling Mode: Air Cooling

X–Ray

X-Ray Rotation Angle: Coaxial ±45˚ tilt is possible

FlatPanel Detector

Effective Area: 432mm*432mm

Pixel Size: 2816×2816

A/D Change: 16Bit

Sample Table

Axis Z: 800mm

Axis X: 500mm

Axis Y: 500mm

Axis R: Horizontal 360° rotation

Maximum Bearing Capacity: Maximum load 100KG

Software and Image Processing Capabilities

Measuring Function: The bubble crack of the test sample was determined by software

Software Processing power: Image inversion, Sharpening, Histogram,Binarization for better analysis of X-RAY images

Image Enhancement: Automatic image enhancement, image reverse color, image edge smoothing, texture

Software Protection Capability: When the machine is unmanned, the X-ray is automatically disconnected after 20 minutes, thus extending the life of the X-ray tube

Radiation Safety

Whole Machine Surface less than 1usv/h: <1usv/h

Safety Door Automatic Interlock Protection Function: When the X-ray is turned on, the safety door automatically locks for protection

Radiation Door: Manual button on and off

Computer

Brand: Advantech

System: WIN10

CPU: I5

X-Ray subject

Size: L1822 mm* W1535 mm* H1929 mm

Weight: about 4500kg

Power

Power Supply: AC110-230VAC,50/60Hz

Applications:

Comprehensive inspection and testing of cast components

Ensures structural integrity and quality performance

Detection of internal defects in casting materials

Verification of dimensional accuracy and consistency
