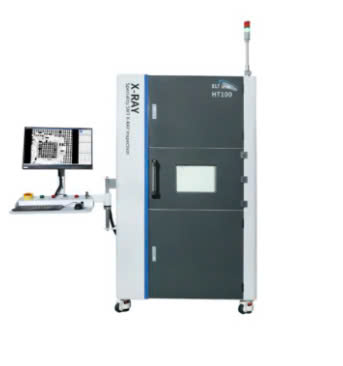

Electronicstalk HT100 Electronics X-ray Inspection (130*130mm, 400x450x300mm)

X-ray Tube

Tube style: Sealed Tube

Tube voltage: 90KV

Tube Current: 200uA

Details Resolution: 5um

Cooling Mode: Cooling Air

Geometric Magnification Time: 125 Times

Flat Panel Detector

Pixel Size: 85um

Pixel Matrix: 1536*1536mm

Effective Imaging Area: 130*130mm

FPS Speed: 20

A/D Conversion Digits: 16bit

Sample table

Axis X: 400mm

Axis Y: 450mm

Axis Z: 300mm

Axis R: Sample table rotation plus or minus 60°

Electrical control

Control Mode: Image automatic navigation function, Point to go there to go there, The whole keyboard, Mouse operation positioning

Programming Mode: Teaching function, CNC automatic positioning

X-Ray Housing

Size: about 1100㎜* 1255㎜ *1865㎜

Weight: about 1100 kg

Power

Power Supply: AC110-230VAC, 50/60Hz

Applications

Detection of defects in PCB boards

Inspection of SMT assemblies

IC packaging defect detection.

BGA (Ball Grid Array) and CSP (Chip Scale Package) bubble welding defect detection

Semiconductor defect detection

Comprehensive defect detection for various electronic components
