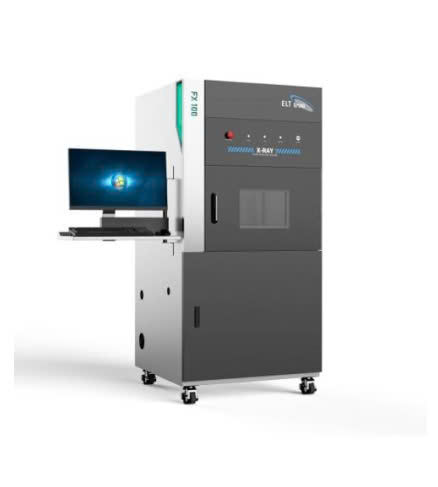

Electronicstalk FX100 Electronics X-ray Inspection (130*130, 500x50x300x300mm)

X-Ray Tube

Tube Style: Seal Tube

Tube Voltage: 90KV

Tube Current: 320uA

Details Resolution: 2um

Cooling Mode: Air cooling

Geometry Magnification (Times): 300 Times

Flat Panel Detector

Pixel Size: 85um

Pixel Matrix: 1536*1536

Effective Imaging Area: 130*130

FPS Speed: 20

A/D Conversion Digits: 16bit

Sample Table

Sample Table Area: Diameter 500mm

Axis X: 500mm

Axis Y: 500mm

Axis Z1:300mm

Axis Z2: 300mm

Axis Q: tilt 70°

Axis R: The Sample Table Rotates Horizontally 360°

Electrical Control

Control Mode: Image automatic navigation function, Point to go there to go there, The whole keyboard, Mouse operation positioning

Programming Mode: Teaching Function, CNC Automatic Positioning

X-Ray Housing

Size: about 1450*1360*1600mm

Weight: about 1600 kg

Power:

Power Supply AC110-230VAC, 50/60Hz

Applications

Detection of defects in PCB boards

Inspection of SMT assemblies

IC packaging defect detection.

BGA (Ball Grid Array) and CSP (Chip Scale Package) bubble welding defect detection

Semiconductor defect detection

Comprehensive defect detection for various electronic components
