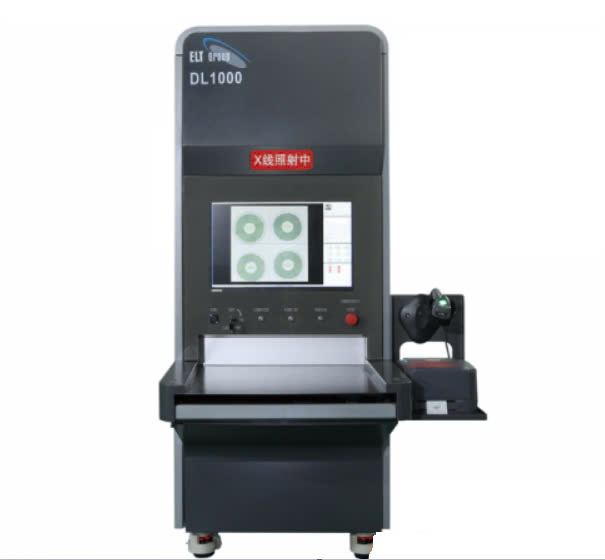

Electronicstalk DL1000 Offline X-ray Counter (422mm*422mm)

Overall Condition of Equipment

Equipment Size: about 730*1050*1875mm(Footing included）

Gross Weight of Equipment: about 700Kg

Supply Voltage: AC110/220V, 50/60Hz

Gross Power: Max 1.5KW

Loading Method: Manual placement, automatic pallet in and out

The X-Ray Tube

X-Ray Tube Voltage: 80KV

X-Ray Tube Current: 1000uA

Detail Resolution: 15um

Detector

Imaging Area: 422mm*422mm

Pixel Size: about 150um

Pixel Matrix: 3072*3072 Pixels

A/D conversion digits: 16bits

- Check item and size

Maximum Size of Tray: 380mm

Minimum Size of Tray: 180mm

Maximum Plate Thickness: about 85mm (Images are not allowed to overlap）

Minimum Plate Thickness: 5mm

Compatible Minimum Element: 01005

Other Compatible: Strip shape material, Box loading bulk material

Counting Time: about 8 s/disc (4 discs can be detected simultaneously)

Counting Accuracy: 01005 achievable 99.8%　0201or up to 99.9%

QR Code Scanning: Can be configured one -dimensional, two – dimensional bar code scanning gun

Label Printing: It can print material coding and counting results in real time

Application:

Rapid counting and inventory management of resistive, capacitive, and IC materials

High-precision chip counting with non-contact methods to prevent damage

Flexible tray compatibility (7-17 inches) for diverse material types

Automatic labeling and material grabbing with high recognition accuracy up to 0.01mm

Support for unmanned loading via Automated Guided Vehicles (AGVs)

Plate induction technology to prevent mislabeling

Efficient detection and counting of single disk or multi-disk materials with feeding options for 1-4 stations
