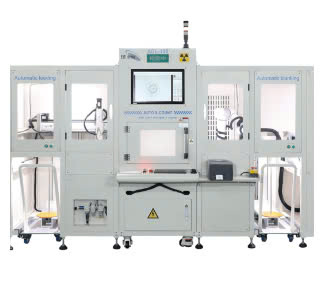

Electronicstalk ADL100 Offline X-ray Counter (427mm*427mm)

X–Ray Tube

Tube Voltage: 80KV

Tube Current: 150uA

Detector

Imaging Area: 427mm*427mm

Pixel Size: about 48um-75um

Pixel Matrix: 3072*3072 Pixels

- Check Item and Size

Maximum Size of Tray: 380mm

Minimum Size of Tray: 180mm

Maximum Plate Thickness: 85mm

Minimum Plate Thickness: 3mm

Compatible Minimum Element: 01005

Counting Time: ≤10s disc

Counting Accuracy: 01005 Reachable 99.8%;　0201 Reachable 99.9% up

Upper (Lower) Feeder (One for each)

Material Size: Diameter 7-13°-15

Material Height: Thickness 8mm~85mm

Speed: 5-10 s per disc

Feed Type: There are two stations in total, each station can store about 50 materials (according to the height of 10m per plate), and two stations are recycled.

Stacker car: Automatic continuous feed to the intelligent point machine, connected to the intelligent point machine front end.

Application:

Rapid counting and inventory management of resistive, capacitive, and IC materials

High-precision chip counting with non-contact methods to prevent damage

Flexible tray compatibility (7-17 inches) for diverse material types

Automatic labeling and material grabbing with high recognition accuracy up to 0.01mm

Support for unmanned loading via Automated Guided Vehicles (AGVs)

Plate induction technology to prevent mislabeling

Efficient detection and counting of single disk or multi-disk materials with feeding options for 1-4 stations
