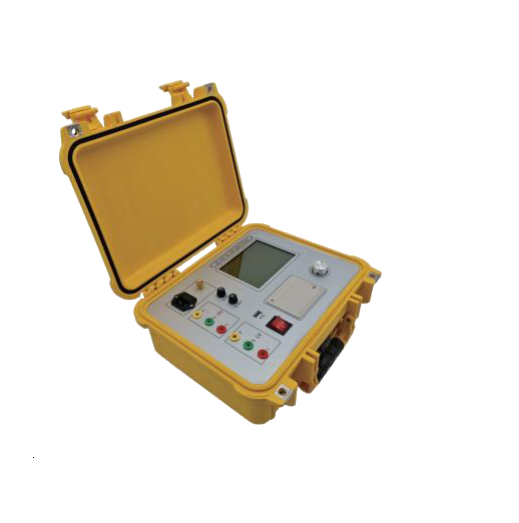

Elecgene STRT-100 TRUE 3-phase turns ratio meter (0.5～10000)

Range: 0.5 ~ 10000

Accuracy: ±0.1%rdg (≤1000); ±0.2%rdg (1001–2000); ±0.3%rdg (2001–4000); ±0.5%rdg (4001–10000)

Vector recognition: 1–12

Transformer phase measurement: Range 0°–360°; Accuracy ±0.5°

Excitation current measurement (optional): Range 0.1mA–2A; Accuracy ±1% ±0.1mA

Power supply: Battery powered (optional); 160–240V AC, 50/60Hz

Environmental conditions: Operating temperature –10°C~50°C; Humidity ≤90%

Net size: 350×290×150mm

Net weight: 4.9kg (without measuring cables)
