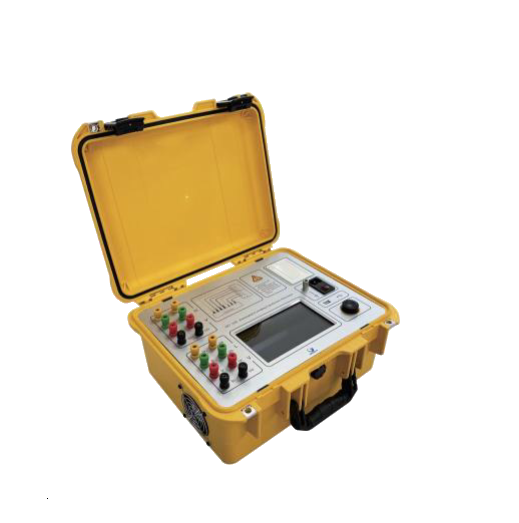

Elecgene DRT-320L Automated Six-winding Transformer Ohmmeter (20A)

Test model: Single phase or three phase

Test current:

Single phase: 20A, 10A, 5A, 1A, 0.1A, 10mA, <1mA

Three phase: 10A+10A, 5A+5A, 1A+1A, 0.1A+0.1A

Test range:

Single phase:

20A (0.5mΩ ~ 1Ω)

10A (1.0mΩ ~ 2Ω)

5A (10mΩ ~ 4Ω)

1A (0.1Ω ~ 20Ω)

0.1A (2.0Ω ~ 100Ω)

10mA (50Ω ~ 2kΩ)

<1mA (500Ω ~ 25kΩ)

Three phase:

10A+10A (0.5mΩ ~ 0.8Ω)

5A+5A (10mΩ ~ 1.6Ω)

1A+1A (0.1Ω ~ 8.0Ω)

0.1A+0.1A (2.0Ω ~ 80Ω)

Accuracy: ±0.2%rdg + 2digit

Power supply: 220V AC, 50Hz

Operating temperature: –10°C ~ 50°C

Relative humidity: ≤90%, no dew

Net size: 400×315×223mm

Net weight: 9kg
