Manufacture: Elcometer
Model: W182---4
Origin: England
Warranty: 12 month
Impact Energy: 2.207 Nm
Accuracy : Better than ± 2 Rebound Number(s) (When tested on Calibration Anvil at 80)
Resolution: 0.1 Rebound Number
Range: 10 to 70 MPa
Memory: 5000 tests
Unit Selection: N/mm2; MPa; kg/cm2; PSI
Autonomy (Continous Use): >5 Hours
Dimensions: Hammer: 280mm length x 55mm diameter; In Case: 190 x 100 x 350mm
Weight: 2kg (4.4lbs) with case
Packing List: Hammer 182, battery charger (UK, EUR & US), serial cable for PC, abrasive stone, instruction manual, calibration certificate and carry case
It displays a range of statistics and there is a facility to download to a PC.
The software and digital display are integrated into the design of the hammer.

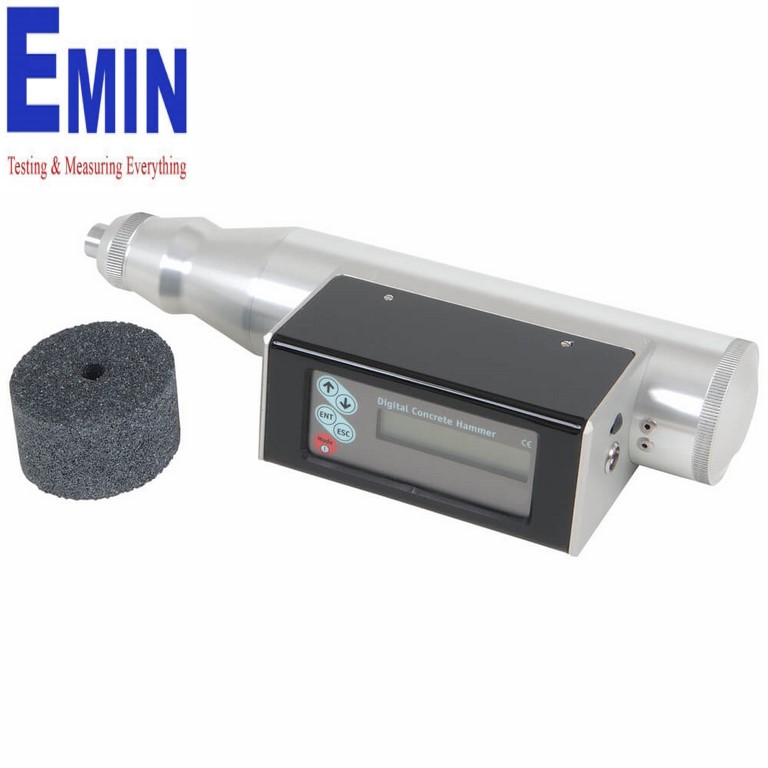

Elcometer 182 Digital Concrete Test Hammer
Technical Specification
|
Part Number |
Description |
Certificate |
|
W182---4 |
Elcometer 182 Digital Concrete Test Hammer |
• |
|
Impact Energy |
2.207 Nm |
|
|
Accuracy |
Better than ± 2 Rebound Number(s) (When tested on Calibration Anvil at 80) |
|
|
Resolution |
0.1 Rebound Number |
|
|
Range |
10 to 70 MPa |
|
|
Memory |
5000 tests |
|
|
Unit Selection |
N/mm2; MPa; kg/cm2; PSI |
|
|
Autonomy (Continous Use) |
>5 Hours |
|
|
Dimensions |
Hammer: 280mm (11.02") length x 55mm (2.17") diameter In Case: 190 x 100 x 350mm (7.48" x 3.94" x 13.78") |
|
|
Weight |
2kg (4.4lbs) with case |
|
|
Packing List |
Hammer, battery charger (UK, EUR & US), serial cable for PC, abrasive stone, instruction manual, calibration certificate and carry case |
|
