Impact energy: 2.207 Nm
Accuracy: Better than ± 2 rebound number (when tested on calibration anvil at 80)
Range: 10 to 100 rebound number
Weight (with case): 1.5 kg
Dimensions: test hammer (extended): 355 mm x 55 mm; storage case:340 mm x 78 mm
Packing List: Elcometer 181 analogue concrete test hammer, plastic storage case, abrasive stone & operating instructions
Concrete test hammers are one of the most widely used instruments in the field of non-destructive testing and Elcometer offer both mechanical and digital models.
This gauge consists of a spring loaded plunger which, when released, strikes the surface with fixed and constant impact energy. During the rebound stroke, the mass moves a pointer that indicates the maximum point of return and at the same time indicates a reference value called Rebound Number.
This number, converted by the correlations available on the hammer, gives the compression resistance value in respect of the impact angle.
Key Features:

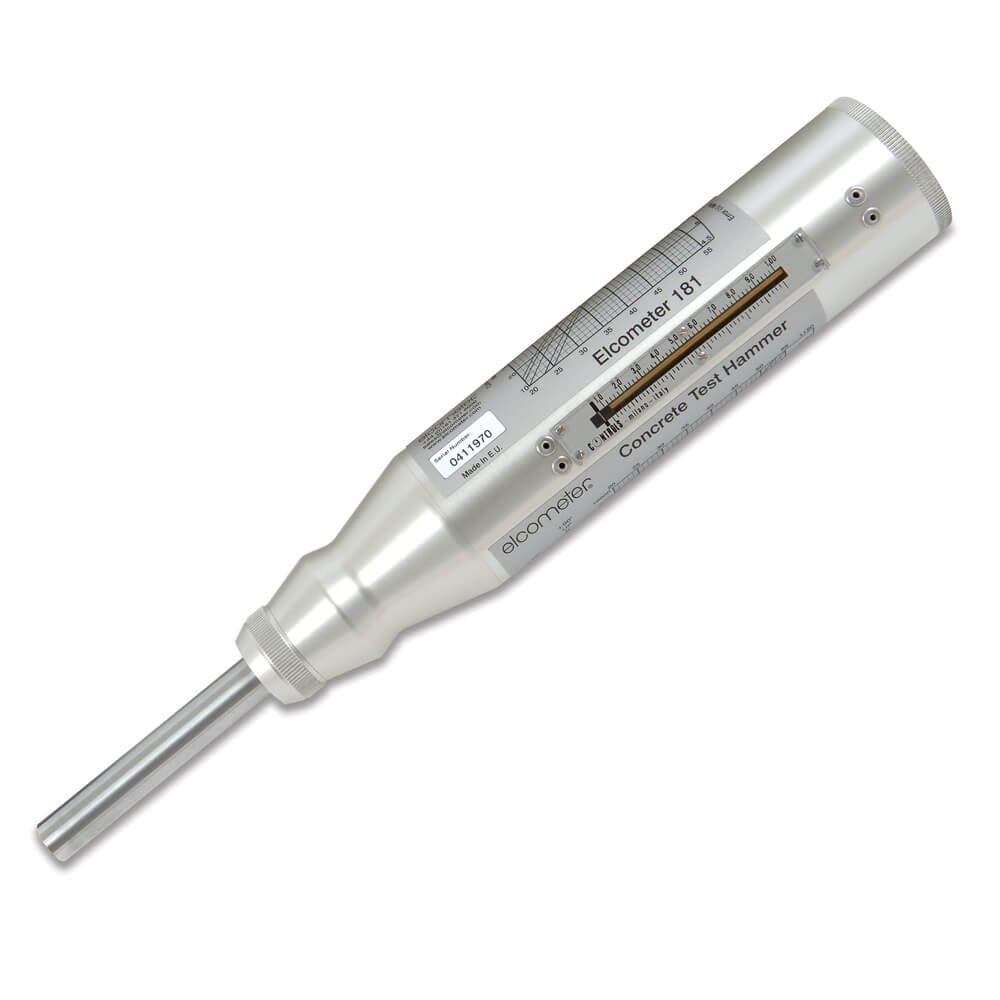

Elcometer 181 Analogue Concrete Test Hammer
Technical Specification
|
Part Number |
Description |
Certificate |
|
W181----1 |
Elcometer 181 Analogue Concrete Test Hammer - MPa / PSI Scale |
ο |
|
Accuracy |
Better than +/- 2 Rebound Number (When tested on Calibration Anvil at 80) |
|
|
Resolution |
2 Rebound Number(s) |
|
|
Range |
10 to 100 Rebound Number(s) |
|
|
Dimensions |
Hammer: 280mm (11.02") length x 55mm (2.17") diameter In Case: 350mm (13.78") length x 80mm (3.15") diameter |
|
|
Weight |
1.5kg (3.3lbs) with case |
|
|
Packing List |
Elcometer 181 analogue concrete test hammer, plastic storage case, abrasive stone & operating instructions |
|
