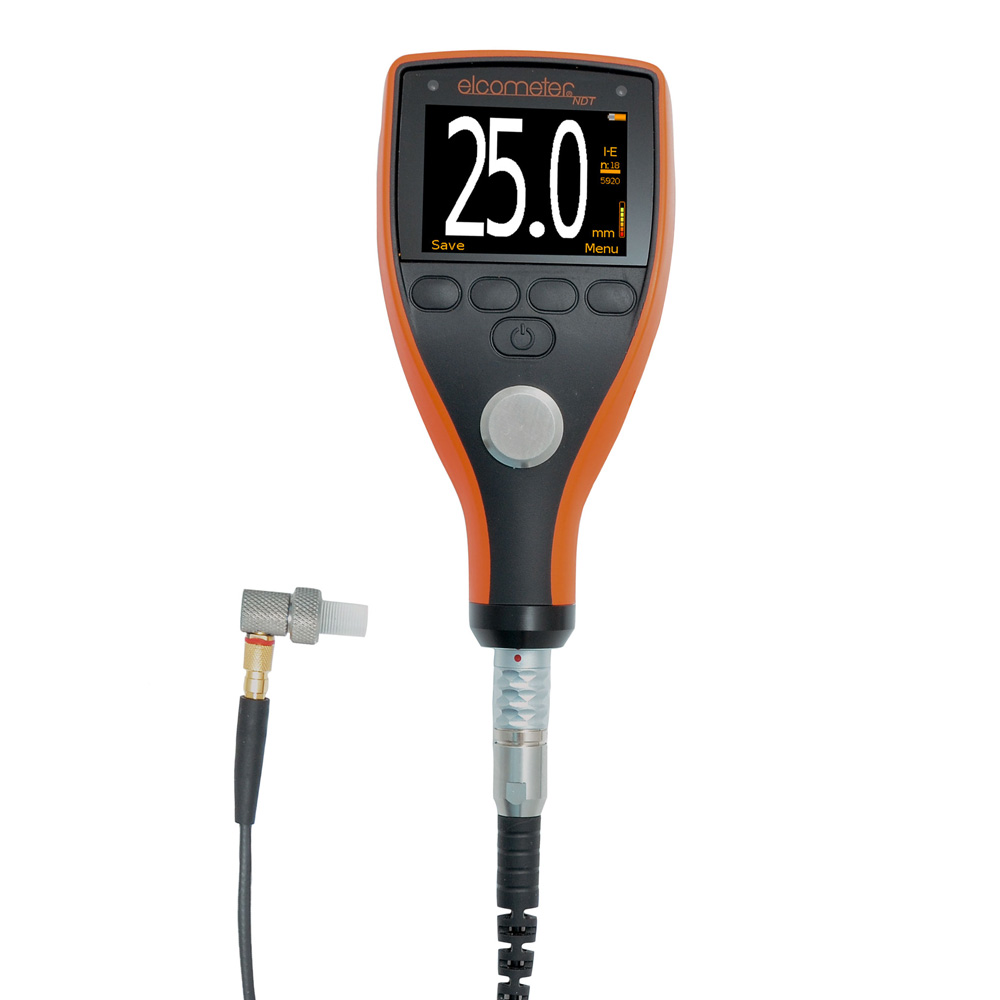

Elcometer PTG6-TXC Precision Thickness Gauge (0.15mm~25.40mm, IP54, Plas)

Name: Elcometer PTG6-TXC Precision Thickness Gauge (0.15mm~25.40mm, IP54, Plas)
Brand: ELCOMETER
Price: 4599.03 USD
Availability: OutOfStock

ManufacturerELCOMETER

ModelPTG6-TXC

USD 4,599.03

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Echo-Echo (E-E), Interface Echo (I-E), Plastic Mode (PLAS)
Measurement Rate: 4, 8, 16Hz
Thickness Range: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Accuracy: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm
Measurement Units: mm or inches
Selectable Reading Resolution
+ Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
+ Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Calibration Options: 1 - point, 2 - point, Material selection; 39 preset materials, Factory; resets to the factory calibration, Velocity (speed of sound)
Data Output: USB; to PC, ElcoMaster® software
Battery Type: 2 x AA
Battery Life: Alkaline: 15 hours
Lithium: 28 hours
Operating Temperature: -10 to 50°C (14 to 122°F)
Size (w x h x d): 145x73x37mm (5.7x2.84x1.46")
Weight (including batteries): 210g (7.4oz)
Packing List: Elcometer PTG6, 15MHz 1/4 inch Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions

Note: A transducer is not suppied with the Gauges, must be ordered separately

Manual

Datasheet

Datasheet Transducer

PTG6 Precision Thickness Gauge

When precision is key, the PTG6 has a measurement range of 0.15mm to 25.40mm with ±1% accuracy, across three measurement modes, Interface Echo (I-E), Echo-Echo (E-E), and Plastic Mode (PLAS). This gauge allows users to take measurements with pinpoint accuracy.

Calibration Options

The PTG6 has a number of calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.

The PTG6 also offers the additional calibration options of 2-Point & Velocity.

Data Output

Compatible with ElcoMaster^® software, individual readings can be downloaded via USB to PC or similar device for further analysis.

Features:

Interface Echo (I-E) Echo-Echo (E-E) ) & Plastic Mode (PLAS) measurement modes
Measurement range from 0.15mm to 25.40mm
2-Point, 1-Point, Material, Thickness Set and Factory Calibration options
User selectable measurement rate; 4,8,16 readings per second
User selectable reading resolution; 0.1mm or 0.01mm
USB output to ElcoMaster^®

Interface Echo (I-E) Measurement Mode Echo Echo (E-E) Measurement Mode Plastic Mode (PLAS) Measurement Mode Measurement Rate of 4Hz Measurement Rate of 8Hz Measurement Rate of 16Hz

Technical Specification

Part Number (with Transducer)¹	PTG6-TXC
Part Number (gauge only)	PTG6
Easy to use menu structure in multiple languages	■
Tough, impact, waterproof and dust resistant equivalent to IP54	■
Bright colour screen with permanent backlight	■
Ambient light sensor, with adjustable brightness	■
Scratch and solvent resistant display; 2.4" (6cm) TFT	■
Large positive feedback buttons	■
USB power supply via PC	■
Gauge software updates²via ElcoMaster^® Software	■
2 year gauge warranty³	■
Measurement Mode
Echo-Echo (E-E)	■
Interface Echo (I-E)	■
Plastic Mode (PLAS)	■
Measurement Rate	4, 8, 16Hz⁴
Thickness Range⁵
E-E 0.15 - 10.15mm (0.006-0.400")	■
I-E 1.65 - 25.40mm (0.065-1.000")	■
PLAS 0.15 - 5.00mm (0.006-0.197")	■
Measurement Accuracy⁶	±1% or ±0.015mm (0.0006")
Measurement Units	mm or inches
Repeatability / Stability Indicator	■
Display Mode: Reading	■
Selectable Reading Resolution
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs	■
Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs	■
Calibration Options
1 - point	■
2 - point	■
Material selection; 39 preset materials	■
Factory; resets to the factory calibration	■
Velocity (speed of sound)	■
Calibration Features
Calibration lock: with optional PIN Lock	■
Test calibration feature	■
Data Output
USB; to PC	■
ElcoMaster^® software	■
Transducer Probe Type	Single element
Auto transducer recognition	■
Battery Type⁷	2 x AA
Battery Life⁷	Alkaline: 15 hours Lithium: 28 hours
Operating Temperature	-10 to 50°C (14 to 122°F)
Size (w x h x d)	145x73x37mm (5.7x2.84x1.46")
Weight (including batteries)	210g (7.4oz)
Packing List	Elcometer PTG6, 15MHz 1/4" Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions
