Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4, 8, 16Hz
Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
Measurement Accuracy: ±1% or ±0.05mm
Measurement Units: mm or inch, m/s, in/µs
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Data Output: USB, bluetooth to PC
Data logging: yes
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g
Packing List: Elcometer MTG8BDL , 5MHz 1/4, 5MHz 1/4 right angle transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, operating instructions
As well as all the features of the MTG2, MTG4 and MTG6, the MTG8 allows users to store into memory up to three calibrations. Once saved the user can select a calibration memory without the need to re-calibrate the gauge, ideal for users who are measuring a variety of materials or thicknesses. Using the gauge alpha-numeric function, calibration memories can be re-named to suit the calibration setting.
Statistics
The MTG8 has user definable upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch. If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.
Display Mode
The MTG8 has Differential Mode; once a user defined nominal thickness value is set, the gauge displays the measured thickness together with the variation from the set nominal value thus indicating areas of the material which are thinner or thicker than expected.
The MTG8 offers B-Scan, a time based, cross sectional 2 dimensional graphical view of the material under test, ideal for relative depth analysis. The zoom of the B-Scan reading can either be set to automatic or can be defined by the user to focus on areas of interest.
Data Logging
The MTG8 can store 100,000 readings in up to 1,000 sequential or grid type batches. Using grid batching, readings are stored in a spreadsheet type format. The Obst feature, allows the user to record an obstruction within the grid.
Data Output
Compatible with ElcoMaster®, PC & Mobile App, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.
|
|
Features:
|
As well as all the features of the MTG2, MTG4 and MTG6, the MTG8 allows users to store into memory up to three calibrations. Once saved the user can select a calibration memory without the need to re-calibrate the gauge, ideal for users who are measuring a variety of materials or thicknesses. Using the gauge alpha-numeric function, calibration memories can be re-named to suit the calibration setting.
Statistics
The MTG8 has user definable upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch. If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.
Display Mode
The MTG8 has Differential Mode; once a user defined nominal thickness value is set, the gauge displays the measured thickness together with the variation from the set nominal value thus indicating areas of the material which are thinner or thicker than expected.
The MTG8 offers B-Scan, a time based, cross sectional 2 dimensional graphical view of the material under test, ideal for relative depth analysis. The zoom of the B-Scan reading can either be set to automatic or can be defined by the user to focus on areas of interest.
Data Logging
The MTG8 can store 100,000 readings in up to 1,000 sequential or grid type batches. Using grid batching, readings are stored in a spreadsheet type format. The Obst feature, allows the user to record an obstruction within the grid.
Data Output
Compatible with ElcoMaster®, PC & Mobile App, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.
|
|
Features:
|

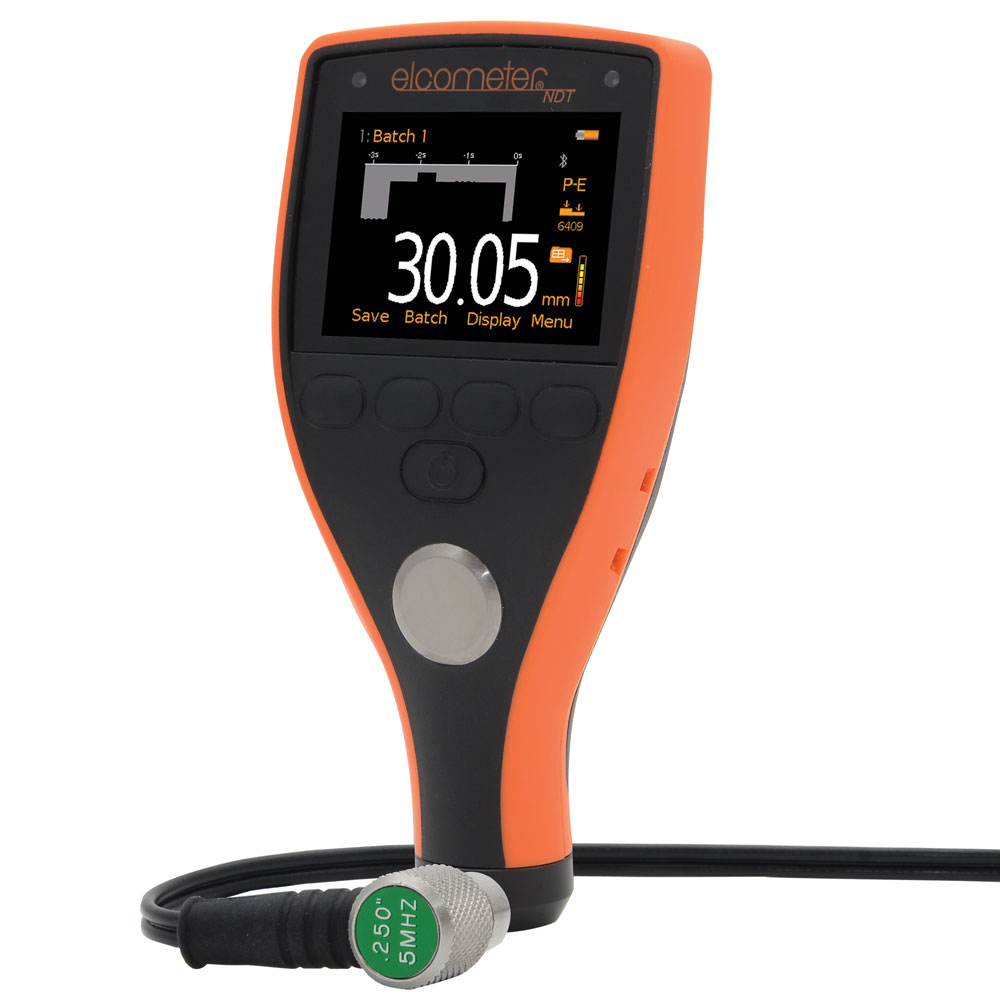

MTG8 Material Thickness Gauge
Technical Specification
|
Part Number (with Transducer)1 |
MTG8BDL-TXC |
|
Part Number (gauge only) |
MTG8BDL |
|
Easy to use menu structure in multiple languages |
■ |
|
Tough, impact, waterproof and dust resistant equivalent to IP54 |
■ |
|
Bright colour screen with permanent backlight |
■ |
|
Ambient light sensor, with adjustable brightness |
■ |
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
Large positive feedback buttons |
■ |
|
USB power supply via PC |
■ |
|
Gauge software updates2 via ElcoMaster® Software |
■ |
|
2 year gauge warranty3 |
■ |
|
Limits: 40 definable audible & visual pass/fail warnings |
■ |
|
Measurement Mode |
|
|
Pulsed Echo (P-E) |
■ |
|
Echo-Echo ThruPaint™ (E-E) |
■ |
|
Velocity Mode (VM) |
■ |
|
Measurement Rate |
4, 8, 16Hz4 |
|
Thickness Range5 |
|
|
P-E: 0.63-500mm (0.025-20") |
■ |
|
E-E: 2.54 - 25.40mm (0.100-1.00") |
■ |
|
Measurement Accuracy6 |
±1% or ±0.05mm (0.002") |
|
Measurement Units |
|
|
mm or inches |
■ |
|
m/s, in/µs |
■ |
|
Repeatability / Stability Indicator |
■ |
|
Display Mode: |
|
|
Reading |
■ |
|
Selected statistics |
■ |
|
Scan thickness bar graph |
■ |
|
Run Chart |
■ |
|
Readings and Differential |
■ |
|
B-Scan cross sectional display |
■ |
|
Selectable Reading Resolution |
|
|
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs |
■ |
|
Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs |
■ |
|
Statistics |
|
|
Number of readings, n, mean average, ẋ, standard deviationσ |
■ |
|
Lowest reading, Lo; Highest reading, Hi |
■ |
|
Low high limit value |
■ |
|
Reading Range Value |
■ |
|
Nominal Value |
■ |
|
Number of readings below low limit |
■ |
|
Number of readings above high limit |
■ |
|
Calibration Options |
|
|
Zero (using the integral zero disc) |
■ |
|
1 - point |
■ |
|
2 - point |
■ |
|
Material selection; 39 preset materials |
■ |
|
Factory; resets to the factory calibration |
■ |
|
Velocity (speed of sound) |
■ |
|
Known thickness value |
■ |
|
Calibration Features |
|
|
Calibration lock: with optional PIN Lock |
■ |
|
Test calibration feature |
■ |
