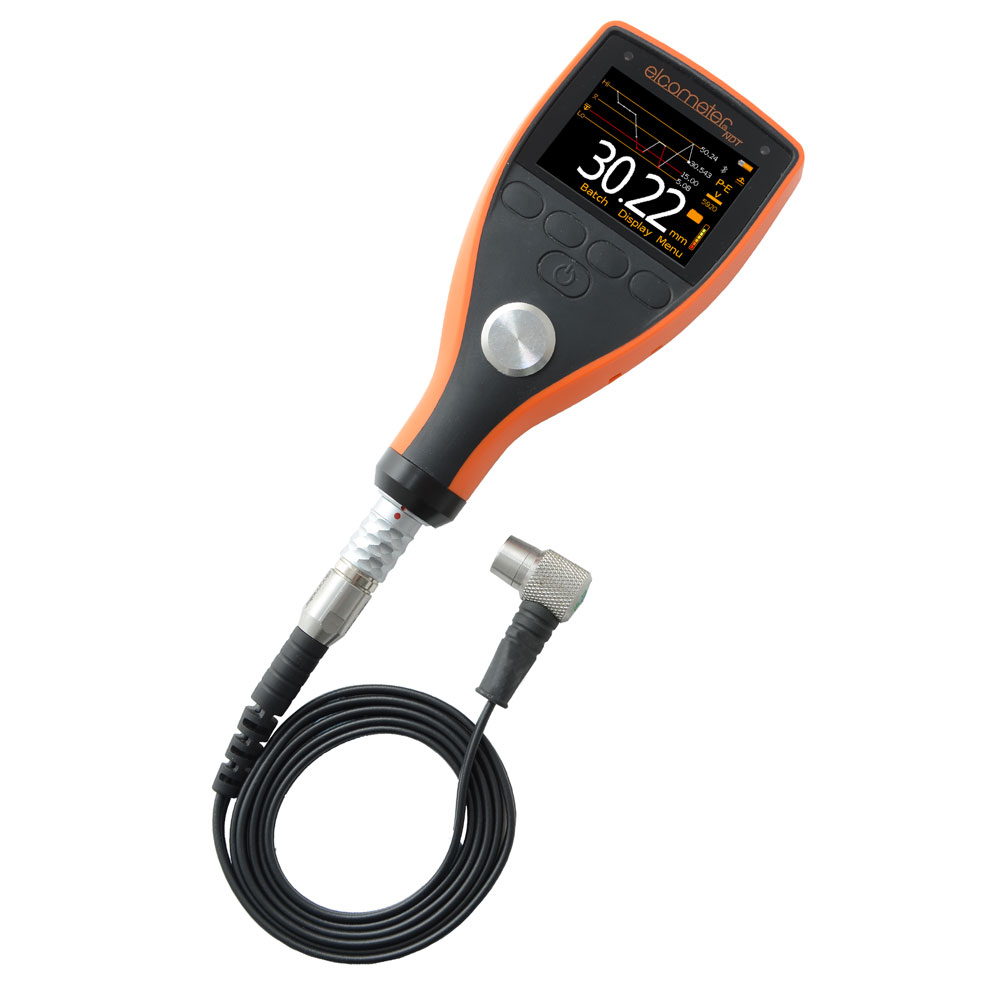

Elcometer MTG6DL-TXC Material Thickness Gauge (500mm, datalogging, scan, bluetooth, IP54,ThruPaint)

Name: Elcometer MTG6DL-TXC Material Thickness Gauge (500mm, datalogging, scan, bluetooth, IP54,ThruPaint)
Brand: ELCOMETER
Price: 3610.96 USD
Availability: OutOfStock

ManufacturerELCOMETER(View more products from this manufacturer)

ModelMTG6DL-TXC

USD 3,610.96

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4, 8, 16Hz
Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
Measurement Accuracy: ±1% or ±0.05mm
Measurement Units: mm or inch, m/s, in/µs
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Data Output: USB, bluetooth to PC
Data logging: yes
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g
Packing List: Elcometer MTG6DL, 5MHz 1/4 right angle transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, operating instructions

Manual

Datasheet

Datasheet Transducer

MTG6 Material Thickness Gauge

With a choice of calibration options, measurement modes – including high speed scan mode, display options and data-logging, the MTG6 is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting.

As well as all the features of the MTG2 & MTG4, the MTG6 has additional calibration options; 2-Point, Velocity and known Thickness Value.

Measurement Mode

The MTG6 offers Velocity Mode (VM) which is ideal for determining the homogeneity of a material/alloy and the correct velocity of a material for calibration.

Using Scan Mode, readings can be taken at a rate of 16Hz (16 readings per second) over a large surface area. When the transducer is lifted off the surface, the average, lowest and highest thickness value is displayed making scan mode ideal for checking a sample overall uniformity.

Display Mode

With a user definable display, users can choose to view readings, statistical information, bar graph - an analogue representation of the current reading together with the highest (Hi) , lowest (Lo); and average (x), reading or a run chart; a trend graph of the last 20 readings.

Data Logging & Data Output

The MTG6 has a single batch gauge memory and can store up to 1,500 readings. Compatible with both ElcoMaster^® and ElcoMaster^® Mobile Apps, readings can be downloaded via USB or Bluetooth^® to PC, iOS or Android™ devices for further analysis and reporting.

Features:

Pulsed-Echo (P-E), Echo-Echo ThruPaint™ & Velocity (VM) measurement modes
2-Point, 1-Point, Material, Velocity, Thickness Set and Factory calibration options
User selectable measurement rate; 4, 8, 16 readings per second
User selectable reading resolution; 0.1mm (0.01”) or 0.01mm (0.001”)
Scan Mode
Readings, Selected Statistics, Bar Graph & Run Chart
Gauge memory; single sequential batch of up to 1,500 readings
USB and Bluetooth^® data output to ElcoMaster^® and ElcoMaster^® Mobile Apps

Pulsed Echo (P-E) Measurement Mode Echo Echo (E-E) Measurement Mode Velocity Mode (VM) Measurement Mode Measurement Rate of 4Hz Measurement Rate of 8Hz Measurement Rate of 16Hz

MTG6 Material Thickness Gauge

Technical Specification

<td style="border:solid windowtext 1.0pt;mso-borde

Part Number (with Transducer)¹	MTG6DL-TXC
Part Number (gauge only)	MTG6DL
Easy to use menu structure in multiple languages	■
Tough, impact, waterproof and dust resistant equivalent to IP54	■
Bright colour screen with permanent backlight	■
Ambient light sensor, with adjustable brightness	■
Scratch and solvent resistant display; 2.4" (6cm) TFT	■
Large positive feedback buttons	■
USB power supply via PC	■
Gauge software updates²via ElcoMaster^® Software	■
2 year gauge warranty³	■
Measurement Mode
Pulsed Echo (P-E)	■
Echo-Echo ThruPaint™ (E-E)	■
Velocity Mode (VM)	■
Measurement Rate	4, 8, 16Hz⁴
Thickness Range⁵
P-E: 0.63-500mm (0.025-20")	■
E-E: 2.54 - 25.40mm (0.100-1.00")	■
Measurement Accuracy⁶	±1% or ±0.05mm (0.002")
Measurement Units
mm or inches	■
m/s, in/µs	■
Repeatability / Stability Indicator	■
Display Mode:
Reading	■
Selected statistics	■
Scan thickness bar graph	■
Run Chart	■
Selectable Reading Resolution
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs	■
Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs	■
Statistics
Number of readings, n, mean average, ẋ, standard deviationσ	■
Lowest reading, Lo; Highest reading, Hi	■
Calibration Options
Zero (using the integral zero disc)	■
1 - point	■
2 - point	■
Material selection; 39 preset materials	■
Factory; resets to the factory calibration	■
Velocity (speed of sound)	■
Known thickness value	■
Calibration Features
Calibration lock: with optional PIN Lock	■
Test calibration feature	■
Data Logging
Number of readings	1,500
Number of batches	1
Sequential batching	■
Delete last reading	■
Date & time stamp	■
Review, clear & delete batches	■
Data Output
USB; to PC	■
Bluetooth^® to computer, Android™ & iOS devices	■
ElcoMaster^® software	■
Transducer Probe Type	Dual element
Auto transducer recognition
