Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4 Hz
Thickness Range: P-E: 0.63-500mm
Measurement Accuracy: ±1% or ±0.1mm
Measurement Units: mm or inches
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
Data Output: USB; to PC
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g

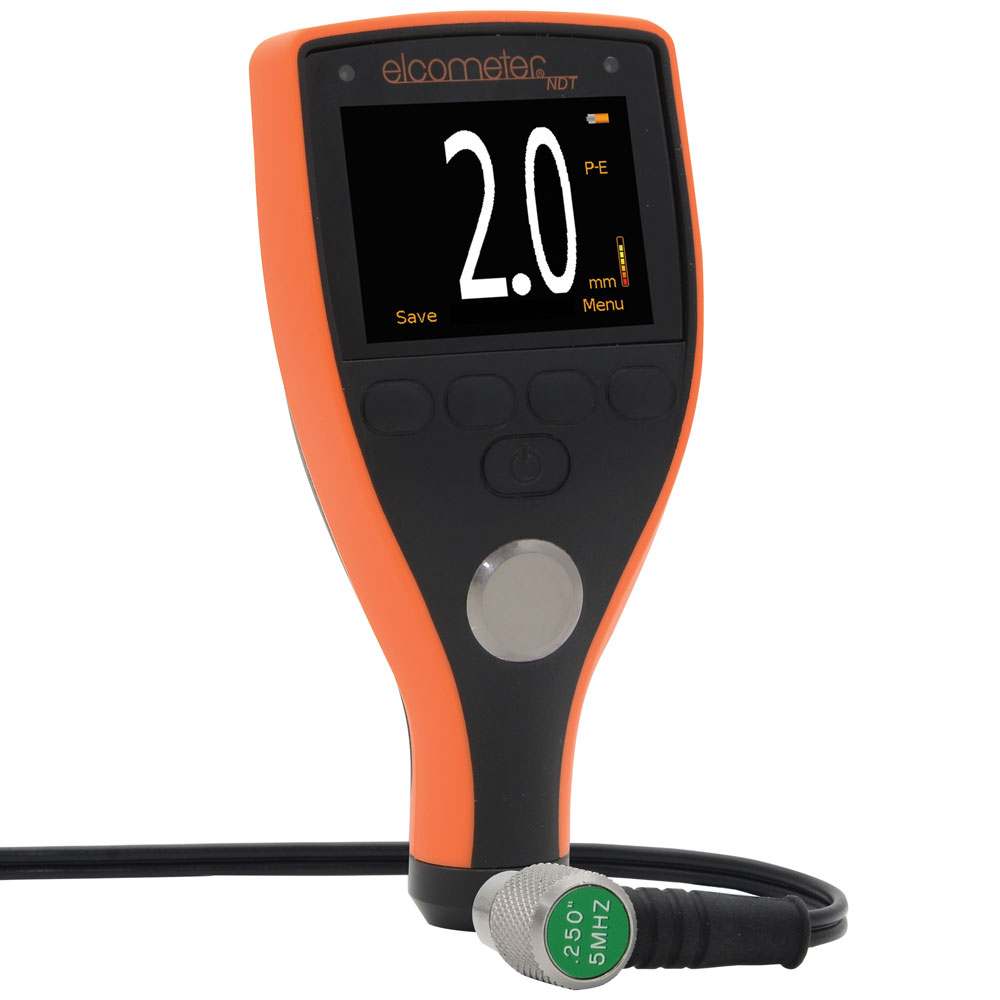

Packing List: Elcometer MTG2 gauge, 5MHz 1/4 right angle transducer, couplant, wrist harness, screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions
|
Part Number (with Transducer)1 |
MTG2-TXC |
|
Easy to use menu structure in multiple languages |
■ |
|
Tough, impact, waterproof and dust resistant equivalent to IP54 |
■ |
|
Bright colour screen with permanent backlight |
■ |
|
Ambient light sensor, with adjustable brightness |
■ |
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
Large positive feedback buttons |
■ |
|
USB power supply via PC |
■ |
|
Gauge software updates2 via ElcoMaster® Software |
■ |
|
2 year gauge warranty3 |
■ |
|
Measurement Mode |
|
|
Pulsed Echo (P-E) |
■ |
|
Measurement Rate |
4Hz |
|
Thickness Range4 |
|
|
P-E: 0.63-500mm (0.025-20") |
■ |
|
Measurement Accuracy5 |
±1% or ±0.1mm (0.004") |
|
Measurement Units |
mm or inches |
|
Repeatability / Stability Indicator |
■ |
|
Display Mode: Reading |
■ |
|
Selectable Reading Resolution |
|
|
Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs |
■ |
|
Calibration Options |
|
|
Zero (using the integral zero disc) |
■ |
|
Data Output |
|
|
USB; to PC |
■ |
|
Transducer Probe Type |
Dual element |
|
Auto transducer recognition |
■ |
|
Auto V-path correction |
■ |
|
Battery Type6 |
2 x AA |
|
Battery Life6 |
Alkaline: 15 hours Lithium: 28 hours |
|
Operating Temperature |
-10 to 50°C (14 to 122°F) |
|
Size (w x h x d) |
145x73x37mm (5.7x2.84x1.46") |
|
Weight (including batteries) |
210g (7.4oz) |
|
Packing List |
Elcometer MTG2 gauge, 5MHz 1/4" right angle transducer, couplant, wrist harness, screen protector, protective case, 2 x AA batteries, calibration certificate, operating instructions |
STANDARDS:
ASTM E797, EN 14127, EN15317
1 5MHz 1/4" right angle transducer supplied
2 Internet connection required
3 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years
4 Dependent on the material being measured and the transducer being used
5 Whichever is the greater
6 Supplied with Alkaline, Lithium and rechargeable can be used with the gauges, continuous use at 1 reading per second
