Transducer Probe type: Single Element
Measurement & Thickness range
+ Interface Echo (IE): 1.65 - 25.40mm
+ Echo Echo (EE): 0.15 - 10.15mm
+ Plastic Mode (PLAS): 0.15 - 5.00mm
Measurement Accuracy: ±1% or 0.015mm (0.001”) - whichever is the greater
Resolution: 0.1mm (0.01”) or 0.01mm switchable
Measurement Rate: 4, 8 & 16Hz (4, 8 & 16 readings per second)
Operating Temperature: -10 to 50°C
Data Output: USB & Bluetooth
Power Supply: 2 x AA batteries
Battery Life 2 Alkaline: Approx. 15 hours Lithium: Approx. 28 hours
Gauge Weight : 210g - including batteries, without transducer
Gauge Dimensions: 145 x 73 x 37mm - without transducer
Packing List: Elcometer 307 Ultrasonic Precision Thickness Gauge, ultrasonic couplant, carry pouch,
3 x screen protectors, wrist harness, 2 x AA batteries, user guide, plastic transit case,
calibration certificate, ElcoMaster software CD & USB cable.

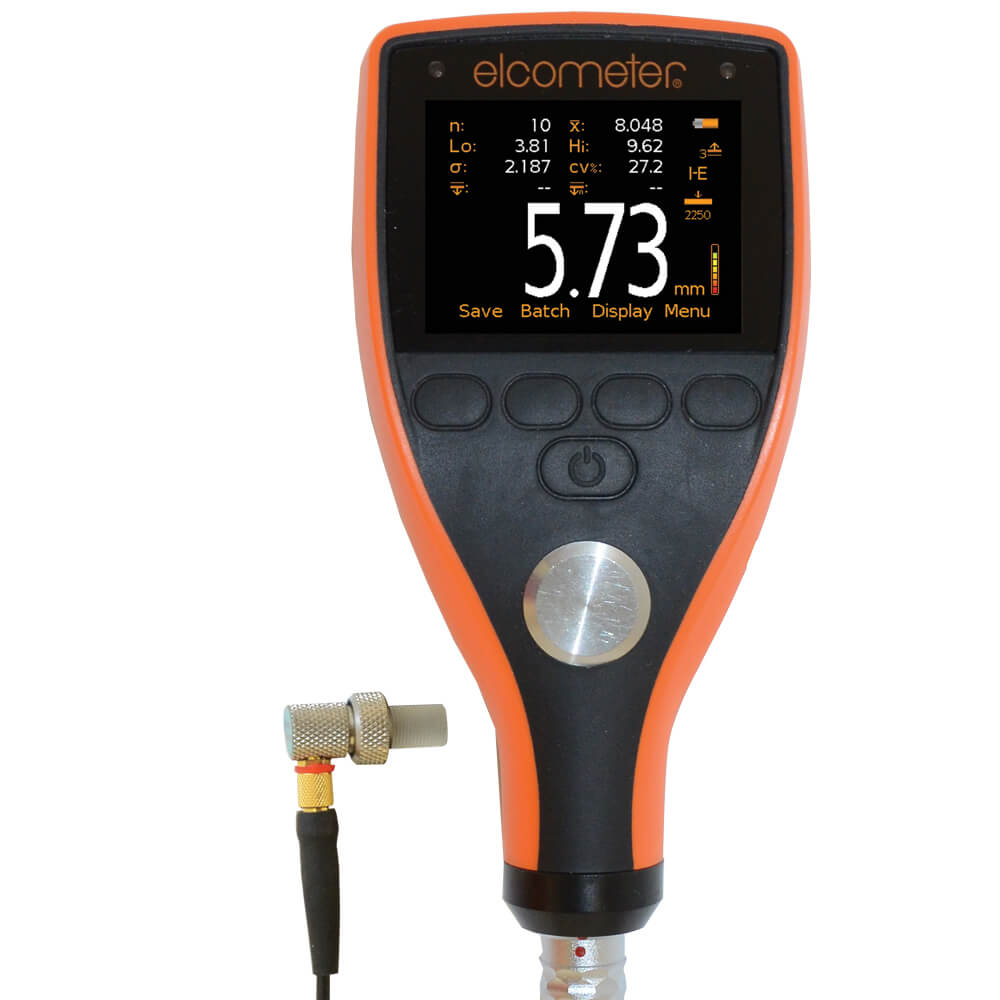

Elcometer 307 Ultrasonic Precision Thickness Gauge
Technical Specification
|
Product Features |
||
|
Precision Thickness Gauge |
C307CDL |
|
|
Precision Thickness Gauge with 15MHz ¼" Single Element Transducer |
C307CDL-TXC |
|
|
Easy to use menu structure in multiple languages |
■ |
|
|
Tough, impact, waterproof & dust resistant; equivalent to IP54 |
■ |
|
|
Bright colour screen; with automatic or manual brightness adjustment |
■ |
|
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
|
Large positive feedback buttons |
■ |
|
|
USB power supply via PC |
■ |
|
|
Gauge software updates1 via ElcoMaster® Software |
■ |
|
|
Data Output |
|
|
|
USB; to PC |
■ |
|
|
Bluetooth®; to PC, Android™ & iOSǂ devices |
■ |
|
|
ElcoMaster® PC software |
■ |
|
|
2 year gauge warranty2 |
■ |
|
|
Limits; 40 definable audible & visual pass/fail warnings |
■ |
|
|
Auto transducer recognition |
■ |
|
|
Measurement Modes |
|
|
|
Interface Echo (IE), Echo-Echo (EE), Plastic Mode (PLAS) |
■ |
|
|
Measurement Rate |
4, 8, 16Hz3 |
|
|
Thickness Range4 |
|
|
|
Interface Echo (IE): 1.65 - 25.40mm (0.065 - 1") |
■ |
|
|
Echo-Echo (EE): 0.15 -10.15mm (0.006 - 0.4") |
■ |
|
|
Plastic Mode (PLAS): 0.15 - 5.00mm (0.006 - 0.197") |
■ |
|
|
Measurement Accuracy (whichever is the greater) |
±1% or ±0.015mm (0.001") |
|
|
Measurement Units |
|
|
|
mm or inches |
■ |
|
|
m/s, inch/µs |
■ |
|
|
Repeatability / Stability Indicator |
■ |
|
|
Display Modes |
|
|
|
Reading |
■ |
|
|
Selected statistics, Scan thickness bar graph, Run Chart, Readings & Differential |
■ |
|
|
Selectable Reading Resolution |
|
|
