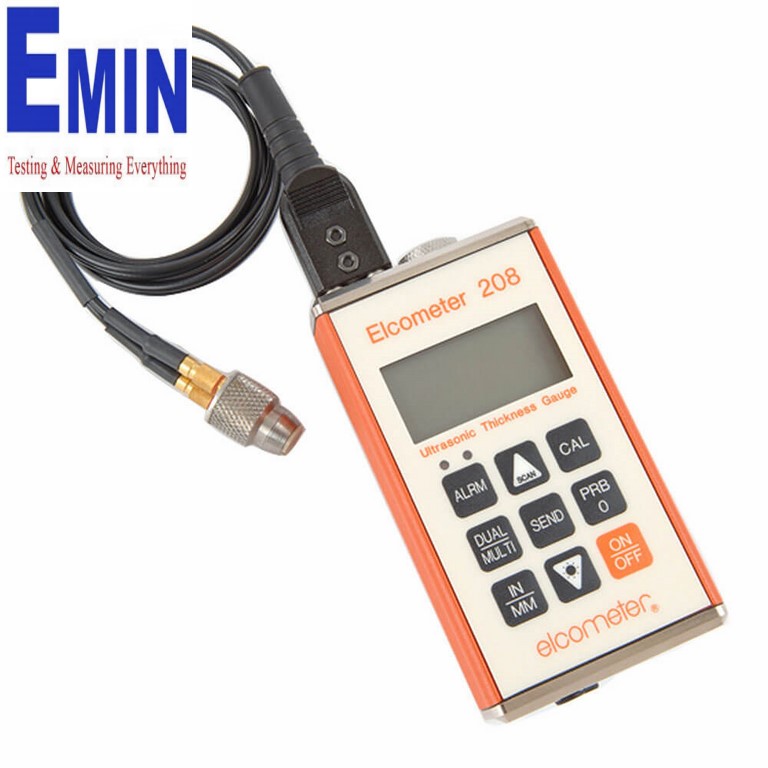

Elcometer 208 Ultrasonic ThruPaint Thickness Gauge (0,63 - 500mm)

Elcometer 208 Ultrasonic ThruPaint Thickness Gauge (0,63 - 500mm)

Manufacture: Elcometer
Model: C208----1
Origin: England
Warranty: 12 month

Scan Mode
Alarm Mode
Maximum Measurement Range: 0.63 - 500mm; 2.54 - 25.4mm in Echo-to-Echo Mode
Velocity Range: 1250 - 10000m/s (0.0492 - 0.3937 in/μs)
Accuracy: ±0.1mm
Resolution: 0.01mm
Units: Millimetres and Inches
Operating Temperature: -20°C to 50°C
Keypad Type: Sealed Membrane
Display: 114mm Digit Liquid Crystal Display with backlight
Battery Type (Life): 2 x AA batteries (200 hours)
Weight: 295g
Dimensions: 63 x 120 x 31mm
Packing List: Elcometer 208 or 208DL gauge, bottle of couplant, 2x batteries, carry case, calibration
certificate and operating instructions.

Note: Transducers are supplied separately
