Built in Probe Type: Steel & Aluminium (FNF)
Fast accurate reading rate: 60+ readings per minute
Accuracy: ±5% or ±20μm (1.0mil)
Resolution: 10μm (0.5mil)
Minimum Substrate Thickness: Steel: 800μm (30mils); Aluminum: 300μm (12mils)
Measurement Range: 0-500μm (0-20mils)
Operating Temperature: -10 to 50°C (14 to 122°F)
Relative Humidity (RH): 0 to 95%
Power Supply: 2 x AA Batteries or via USB (rechargeable batteries can also be used)
Battery Life3: Alkaline: Approximately 16 hours; Lithium: Approximately 24 hours
Gauge Dimensions: 14.1 x 7.30 x 3.70cm
Gauge Weight (including batteries): 156g (5.5oz)
Packing List: Elcometer 311 gauge, 2 x AA batteries, steel & aluminium check pieces*, calibration check foil, wrist strap, impact resistant
carry case, calibration test certificate, operating instructions
With instant material recognition, the Elcometer 311 FNF Paint Meter switches between steel and aluminium panels and is ideal for use in all weather conditions.
The Elcometer 311 Automotive Paint Meter allows the user to quickly identify vehicle’s damage not reported in public or commercial condition reports including:
Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual paint thickness readings can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.
Key features and benefits of the Elcometer 311 paint gauge include:
With instant material recognition, the Elcometer 311 FNF Paint Meter switches between steel and aluminium panels and is ideal for use in all weather conditions.
The Elcometer 311 Automotive Paint Meter allows the user to quickly identify vehicle’s damage not reported in public or commercial condition reports including:
Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual paint thickness readings can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.
Key features and benefits of the Elcometer 311 paint gauge include:

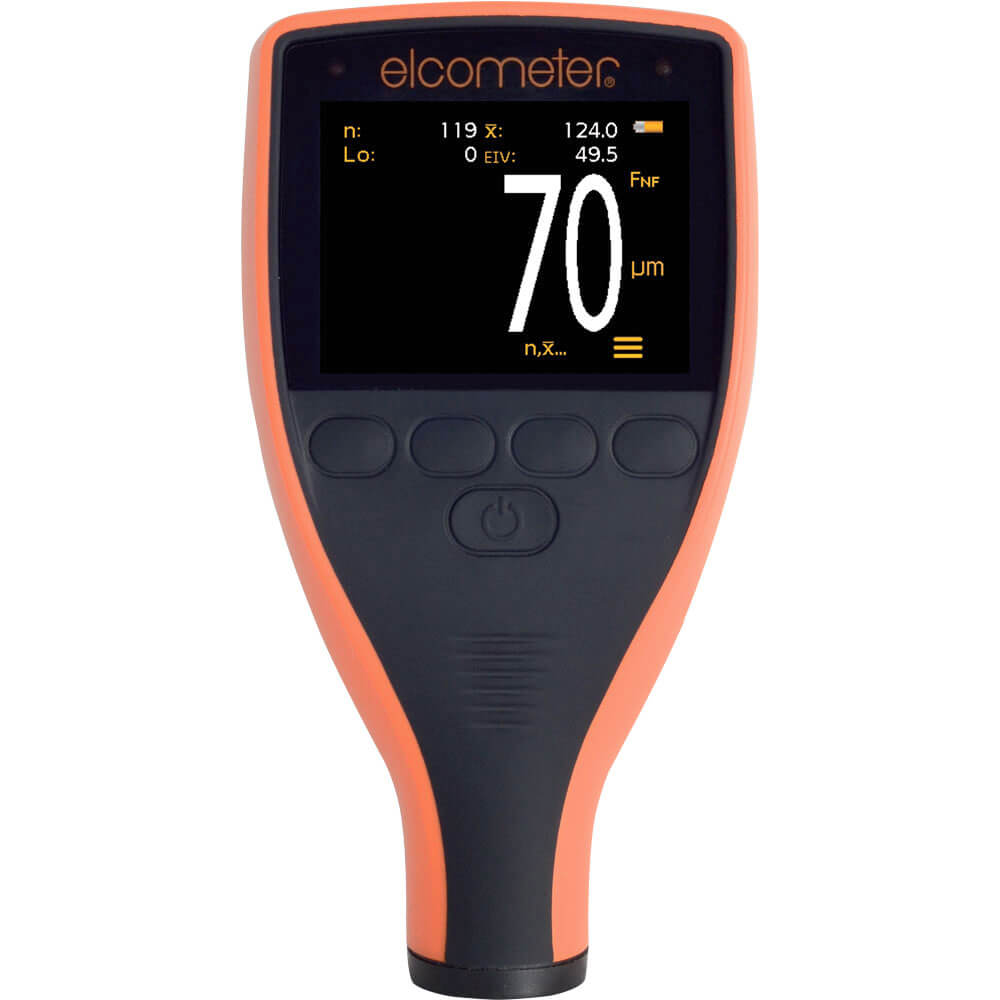

The New Elcometer 311 Automotive Paint Meter
Technical Specification
|
|
Model B |
Model B |
Model T |
|
Part Number |
A311CFBI |
A311CFNFBI |
A311CFNFTI |
|
Calibration Test Certificate |
• |
• |
• |
|
Built in Probe Type |
Steel |
Steel & Aluminium |
Steel & Aluminium |
|
Fast accurate reading rate; 60+ readings per minute |
■ |
■ |
■ |
|
On screen statistics Number of readings, n |
|
|
■ |
|
Wireless Data output via Bluetooth® or USB |
|
|
■ |
|
Accuracy1 |
±5% or ±20μm (1.0mil) |
||
|
Resolution |
10μm (0.5mil) |
||
|
Minimum Substrate Thickness2 |
Steel: 800μm (30mils) |
||
|
Measurement Range |
0-500μm (0-20mils) |
||
|
Operating Temperature |
-10 to 50°C (14 to 122°F) |
||
|
Relative Humidity (RH) |
0 to 95% |
||
|
Power Supply |
2 x AA Batteries or via USB |
||
|
Battery Life3 |
Alkaline: Approximately 16 hours |
||
|
Gauge Dimensions |
14.1 x 7.30 x 3.70cm (5.55 x 2.87 x 1.46”) |
||
|
Gauge Weight |
156g (5.5oz) |
||
|
Packing List |
Elcometer 311 gauge, 2 x AA batteries, steel & aluminium check pieces*, calibration check foil, wrist strap, impact resistant carry case, calibration test certificate, operating instructions, 2 year warranty extension card. |
||
* F models: Steel Check Piece FNF models: Steel & Aluminium Check Pieces
1 Whichever is the greater
2 For specified accuracy
3 Rechargeable batteries may differ
