Elcometer 355-S Standard Coating Thickness Gauge (5000 reading, RS232)
Manufacture: Elcometer
Model: 355-S
Origin: England
Warranty: 12 month
Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C
Dimensions: 175 x 83 x 42mm
Weight: 650g
Reading Speed: 40 readings per minute
Auto Repeat Mode: 130/140 readings per minute
Data Output: RS232C Serial or Parallel Output via D25 Type Connector (Female)
Memory Standard: 5,000 reading memory in pre-set batches
Battery Type: 3 x 1.5V AA Cells (Alkaline) or 3 x 1.5V Nickel Metal Hydride rechargeable cells
Battery Life: Minimum: 40 hours with alkaline batteries, 20 hours with rechargeable batteries
Packing List: Elcometer 355 Top or Standard Gauge, leather carry case, 3 x AA batteries, ElcoMaster® software, PC cable and operating instructions
Note: Each coating thickness gauge is supplied without a probe

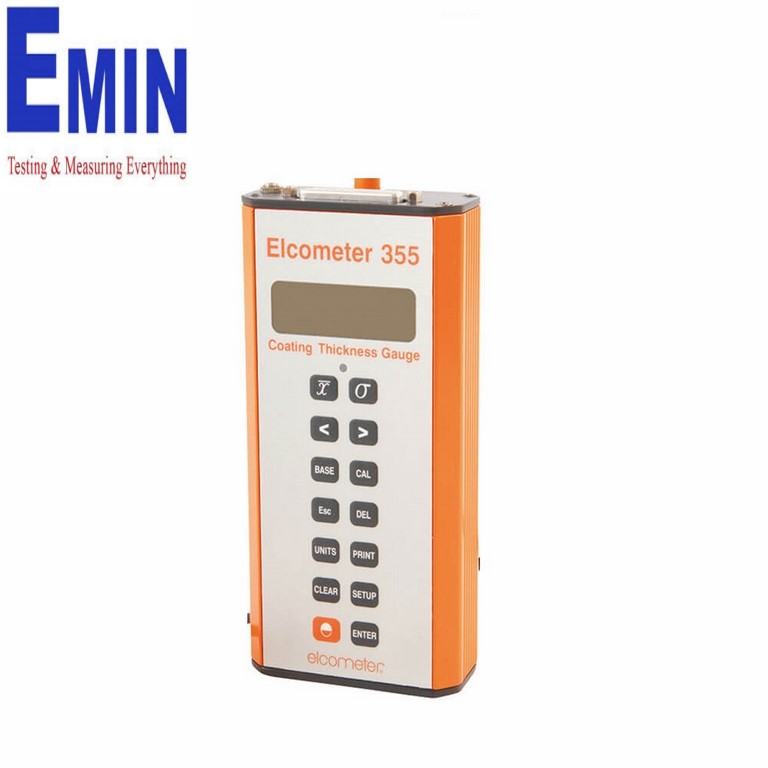

Elcometer 355 Coating Thickness Gauge
The Elcometer 355 Coating Thickness Gauge watchwords are accuracy, simplicity, versatility and durability making this a true state of the art hand-held measuring system packed with time-saving and cost-cutting features.
Available as a standard and top model, the unit large memory stores up to 10,000 readings in batches and data can be output to PC, datalogger or printer as required.
With a comprehensive range of Probe Modules available, simply select the most appropriate for the application. All modules are supplied with calibration foils.
- ±1% or 1µm, whichever is the greater, accuracy
- Rugged aluminium case designed for the toughest environments
- ElcoMaster® software supplied
- Full statistical analysis - mean standard deviation, number of readings, highest and lowest value
- RS232 output
- Date and time stamp
Each coating thickness gauge is supplied without a probe allowing the choice of the correct probe for the relevant applications.
lcometer 355 Coating Thickness Gauge
Technical Specification
|
Part Number |
Description |
Certificate |
|
A355----S |
Elcometer 355 Standard Coating Thickness Gauge |
ο |
|
A355----T |
Elcometer 355 Top Coating Thickness Gauge |
ο |
|
Operating Temperature |
0°C to 50°C (32°F to 120°F) |
|
|
Storage Temperature |
-10°C to 60°C (14°F to 140°F) |
|
|
Dimensions |
175 x 83 x 42mm (6.9 x 3.3 x 1.6”) |
|
|
Weight |
650g (1.43lb) |
|
|
Reading Speed |
40 readings per minute |
|
|
Auto Repeat Mode |
130/140 readings per minute |
|
|
Data Output |
RS232C Serial or Parallel Output via D25 Type Connector (Female) |
|
|
Memory |
Standard: 5,000 reading memory in pre-set batches |
|
|
Battery Type |
3 x 1.5V AA Cells (Alkaline) or 3 x 1.5V Nickel Metal Hydride rechargeable cells |
|
|
Battery Life |
Minimum: 40 hours with alkaline batteries, 20 hours with rechargeable batteries |
|
|
Packing List |
Elcometer 355 Top or Standard Gauge, leather carry case, 3 x AA batteries, ElcoMaster® software, PC cable and operating instructions |
|
