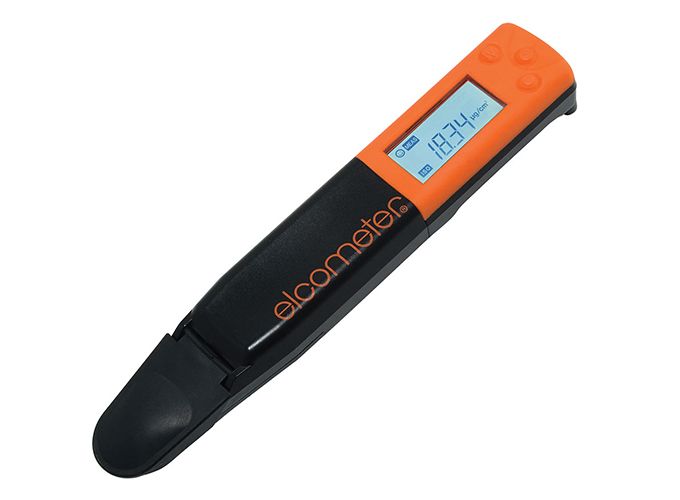

ELCOMETER 138 Bresle Salt Meter

Measurement Principle: Measurement Principle

Measurement Mode: ISO, IMO, Temperature

Minimum Sample Volume: 0.12ml

ISO Mode

Measuring Range: 0 - 2399µg/cm²

Conversion Factor
µS/cm to µg/cm² : 0.12

µS/cm to mg/m² : 1.2

Resolution:

0 - 239.9µg/cm² : 0.1µg/cm²

240 - 2399µg/cm² : 1µg/cm²

IMO Mode

Measuring Range: 0 - 2199µg/cm²

Conversion Factor

µS/cm to µg/cm² : 0.11

µS/cm to mg/m² : 1.1

Resolution:

0 - 219.9µg/cm² : 0.1µg/cm²

220 - 2199µg/cm² : 1µg/cm²

Accuracy: ±2% full scale (for each range)*

Operating Temperature: 5°C to 40°C (41°F to 104°F)

Operating Humidity: 85% or less relative humidity (no condensation)

Battery Type: 2 x CR2032 lithium batteries

Battery Life: approx. 200 hours of continuous use without backlight

Weight: 50g (1.76oz) - including sensor and batteries

Dimensions: 164 x 29 x 20mm (6.5 x 1.1 x 0.79”)
