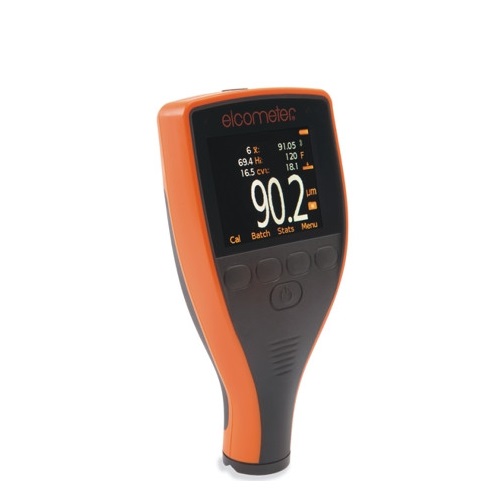

ELCOMETER A456CFBS Coating Thickness Gauge

Name: ELCOMETER A456CFBS Coating Thickness Gauge
Brand: ELCOMETER
Price: 654 USD
Availability: OutOfStock

ManufacturerELCOMETER(View more products from this manufacturer)

ModelA456CFBS

OriginUnited Kingdom

USD 654.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Ferrous Separate

Calibration memory type; gauge (g) or gauge & batch (gb): g

Gauge memory: last 5

Tough, impact, water & dust resistant; equivalent to IP64

Display information: 2.4 inch (6cm) QVGA colour TFT display, 320 x 240 pixels

Battery type: 2 x AA dry cell batteries, rechargeable batteries can also be used

Battery life: ~24 hours of continuous use at 1 reading per second5

Gauge dimensions (h x w x d): 141 x 73 x 37mm

Gauge weight: 161g including supplied batteries

Operating temperature: -10 to 50°C

Packing list: Elcometer 456 gauge, calibration foils (integrals only), protective case, 2 x AA batteries, operating instructions

Manual

Datasheet

The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.

The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T.

Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results.

Elcometer 456 Coating Thickness Gauge

Technical Specification

Integral Model Options
Scale 1	Range: 0-1500μm (0-60mils)	Accuracy*: ±1-3% or ±2.5μm (±0.1mil)
	Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm (0.01mil: 0-5mils; 0.1mil: 5-60mils)
	Model B	Model S	Model T	C
Elcometer 456 Ferrous Integral	A456CFBI1	A456CFSI1	A456CFTI1	●
Elcometer 456 Non-Ferrous Integral	A456CNBI1	See separate gauges with N2 PINIP™ Probe	See separate gauges with N2 PINIP™ Probe	●
Elcometer 456 Dual FNF Integral	A456CFNFBI1	A456CFNFSI1	A456CFNFTI1	●

Scale 2	Range: 0-5mm (0-200mils)	Accuracy*: ±1-3% or ±20μm (±1.0mil)
	Resolution: 1μm: 0-1mm; 10μm: 1-5mm (0.1mil: 0-50mils; 1mil: 50-200mils)
For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance
	Model B	Model S	Model T	C
Elcometer 456 Ferrous Integral	A456CFBI2	See separate gauges with F2 PINIP™ Probe	See separate gauges with F2 PINIP™ Probe	●

Scale 3	Range: 0-13mm (0-500mils)	Accuracy*: ±1-3% or ±50μm (±2.0mils)
	Resolution: 1μm: 0-2mm; 10μm: 2-13mm (0.1mil: 0-100mils; 1mil: 100-500mils)
	Model B	Model S	Model T	C
Elcometer 456 Ferrous Integral	A456CFBI3	See separate gauges with F3 PINIP™ Probe	See separate gauges with F3 PINIP™ Probe	●

Separate Model Options
	Model B	Model S	Model T	C
Elcometer 456 Ferrous Separate	A456CFBS	A456CFSS	A456CFTS	●
Elcometer 456 Non-Ferrous Separate	A456CNBS	A456CNSS	A456CNTS	●
Elcometer 456 Dual FNF Separate	A456CFNFBS	A456CFNFSS	A456CFNFTS	●
Probes are supplied separately
