Applications
Irrigation research
Water quantity research
Monitoring water quantity
Discharge measurements
Note: the oil in the body needs to be replaced once every few years.
Specifications
Measured parameters: Meter per second
Measuring range: 0.025 - 10 m/s
Production material: Stainless steel
Standard propeller diameter: 125 mm
Rod length: 2 m
Registration type: Manual or logging
Package size: 114 x 47 x 56 cm
Weight: 7.5 kg
Description

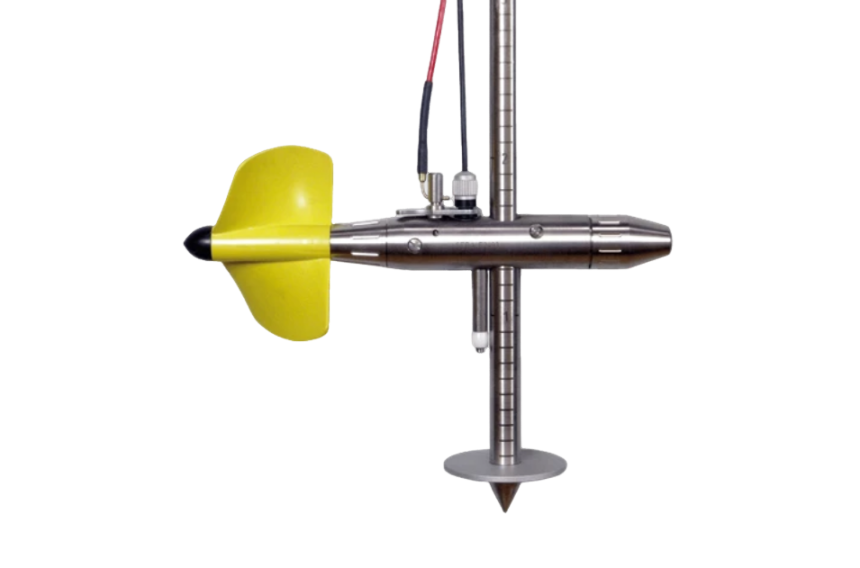

The measurements are executed with the propeller mounted on the rod(s) or connected to a cable. The current velocity meter has a measuring range of 0.025 to 10 m/sec.
The meter with the extension rods is usually applied for measurements in shallow creeks or rivers with low current velocities. The digital counter, fitted with a carrier belt, registers up to 10 pulses per seconds. In large water ways with higher water levels and current velocities the current velocity meter can be connected to a cable with single drum winch (optional), which can be mounted either to the railing of a bridge or a boat.
The complete set contains:
Streamlined current velocity meter with a synthetic propeller
Digital counter
Extension rods with graduation
Cable
Case
Accessories
Manual
