Eijkelkamp 12.42 Multisampler - rod operated, 5 m (5 m)

Applications

Environmental soil research

Undisturbed sampling

Sewage water research

Anaerobe sampling

Liquid layer sampling

Sludge sampling

Sediment sampling

Specifications

Connection: Bayonet

Sampling diameter: 40 mm, if ball valve 20 mm

Maximum sample depth: 5 m

Product material: Stainless steel

Sampler position: Vertical

Sample length: 1 m

Sample specification: Undisturbed

Sample stored in: Tube acrylic transparant

Tube diameter: ø 50 x 5 mm

Sample volume: 1.14 l

Package size: 150 x 22 x 25 cm

Weight: 15.5 kg

Description

With the Multisampler you can quickly and easily take undisturbed sediment samples in both wet, solid and fluid material. This standard set is rod-operated and suitable for application in water up to a depth of 5 metres. It is possible to sample at an accurate depth (without mixing with higher layers). Accurate mix sampling can be done during a procedure.

Method

The samples are taken in a transparent tube, which allows you to immediately visually check the sample and make a clear profile description. The device is pushed into the sludge. To prevent compaction of the layers, a piston is kept in a stationary position in relation to the sludge. The piston can be operated directly with a rod, so that the sample can be pushed from the sampler into the sampling trough on site. The sampling tube can be quickly disinfected or changed, making it even easier to take samples. This set is supplied in a carrying bag with shoulder strap. Please note that the Multisampler is not suitable for hammering.

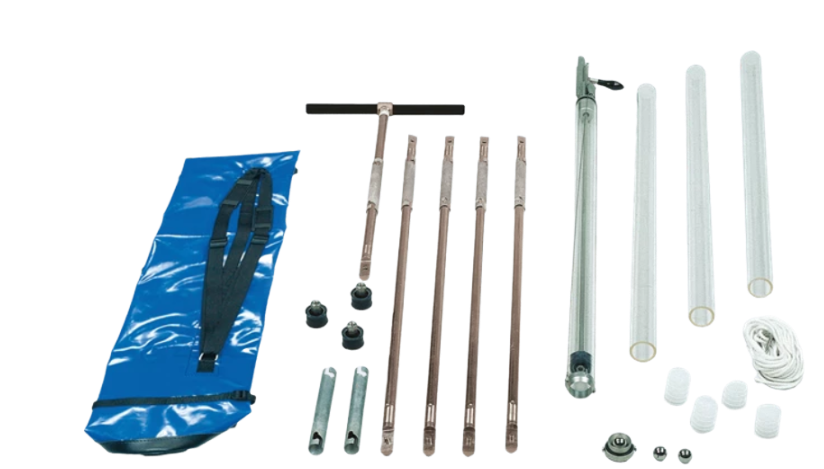

Set contains

Multisampler

Two cutting heads (one for fluid- and one for solid material)

Sampling tubes

Pistons

Extension rods

Top-piece

Various accessories

Carrying bag with shoulder strap

Manual
