Eijkelkamp 11.11.03.06 Cera-Diver water level logger (50m; 0.19cmH2O)

Applications:

Geohydrological research

Water quantity research

Monitoring water quantity

Long-term water level monitoring

Groundwater monitoring projects

Specifications:

Range: 50m

Accuracy: 0.05%/50m

Resolution: 0.19 cmH2O

Battery life:8-10 years

Data storage capacity:48,000

Operating temperature:0℃ - 50℃

Casing material:Zirconia (ZrO2)

Sample interval:0.5 seconds to 99 hours

Protection class:IP68, 10 years continuously submerged in water at 100m

Weight:50 g

Description

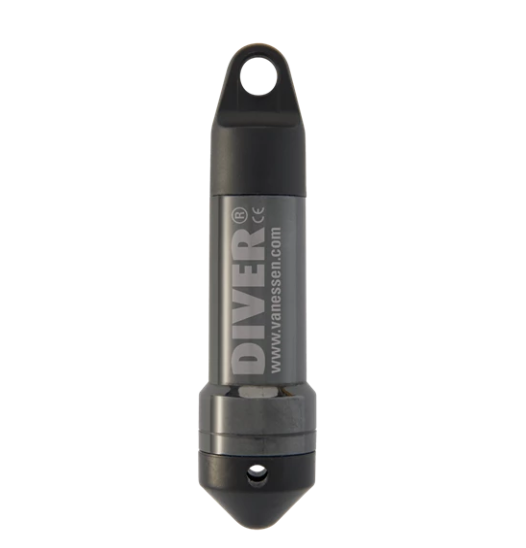

Monitoring groundwater under potentially corrosive conditions, such as brackish water and seawater, requires a robust and durable datalogger. The ceramic-shelled Cera-Diver is designed specifically for such environments. This highly reliable and compact Diver measures groundwater levels with a typical accuracy of ±0.05% full scale.

In addition to its rugged casing, the Cera-Diver’s memory capacity can store up to 48,000 measurements (date/time, pressure and temperature). That's almost one measurement every ten minutes for an entire year. Connect the diver to a modem to transmit collected data directly from the field to your data centre.

Features

The Cera-Diver comes with a 22mm diameter ceramic casing and is suitable for use in brackish and salt water, or other aggressive environments.

Corrosion-proof

Various measurement methods

30-Point pressure factory calibration

Event based, averaging and pumping tests sample methods to conserve memory

Suitable for cost effective frequent, long-term measuring

Special software is available for the Divers. Download via WeTransfer.

Available variations

11.11.03.02 Range 10 metre, accuracy 0.05%/10m, resolution 0.06 cmH2O

11.11.03.04 Range 20 metre, accuracy 0.05%/20m, resolution 0.09 cmH2O

11.11.03.06 Range 50 metre, accuracy 0.05%/50m, resolution 0.19 cmH2O

11.11.03.08 Range 100 metre, accuracy 0.05%/100m, resolution 0.36 cmH2O

Manual
