Applications
Water level measurements of electrically conducting liquids in boreholes, wells and tanks (in ATEX-free zones only)
Long-term observations for periodic level soundings
Continuous water level registration during pumping tests
Additional sounding of well depths using the bottom sensor (accessory)
Geohydrological research
Water quantity research
Specifications
Range: 30m
Diameter (D) and/or size (L*W*H): Sensor D 15 mm, L 195 mm
Measured parameters: Level
Measuring principles: Conductivity
Power supply: Battery, 4x1,5 volt DC (AA) with 2 years lifetime
Product material: Stainless steel and electroplated brass (easy to clean)
Safety class for probe: IP 68, permanently pressure resistant
Safety class measuring tape: IP 64, spray water resistant
Reading accuracy: 1 cm
Registration type: Manual
Recommended storage temperature: +5°C up to +30°C, for battery protection
Package size: 34x22x23 or 39x35x35 cm
Weight: 2,1 or 3 or 5 kg
Description

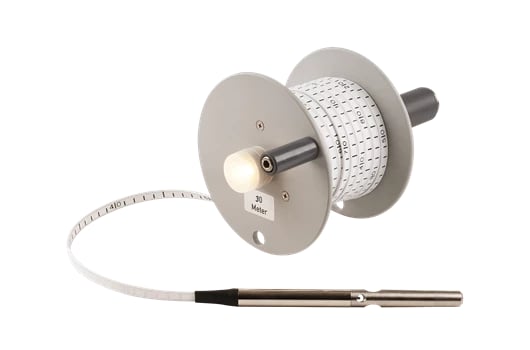

The water level meter is part of the standard equipment for measuring the groundwater level. It is provided with a stainless steel probe, which is connected to a measuring tape with centimetre graduation. This compact version is characterised by its robust design and favourable price. Its low weight and slim design make it easy to transport.
When the probe touches a conductive liquid, it will emit a clear acoustic and light signal. Once the cable is then slightly lifted, the signal will stop and the depth reading can be done directly from the measuring tape (accuracy: ± 1 centimetre).
