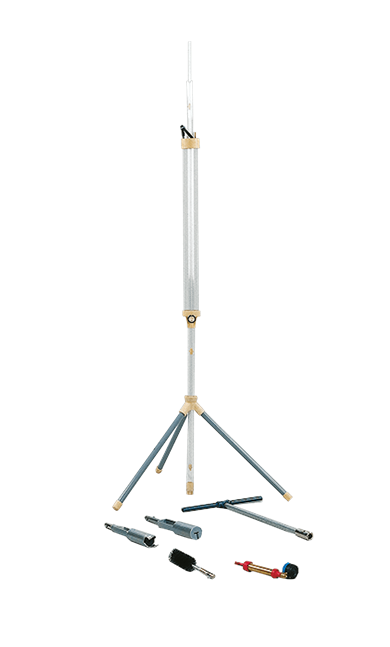

Eijkelkamp 09.07 Guelph constant head permeameter (15~75 cm)

Specifications

Depth Range (Standard Unit): 15 to 75 cm (note: with Extension Tubes, measuring depths can be increased)

Auger Cutting Diameter: 6 cm (2-3/8 inches)

Well Height Range: 2.5 cm to 25 cm

Hydraulic Conductivity Range: 10⁻⁴ to 10⁻⁷ m/sec (10⁻² to 10⁻⁵ cm/sec)

Collapsible Water Container Capacity: 11.36 liters

Maximum Permeameter Capacity: 3.18 litres combined reservoir

Combined Reservoir Cross-sectional Area (X value): 35.22 cm² (±0.18 cm² standard deviation)

Inner Reservoir Cross-sectional Area (Y value): 0.16 cm² (±0.04 cm² standard deviation)

Package Size: 137 x 15 x 18 cm

Weight: 21 kg

Set Contains

Guelph constant head permeameter

Field tripod

Augers

Well brush

Water container

Vacuum test hand pump, etc.

Carrying case

Applications

Soil Permeability

Environmental Monitoring

Mining

Soil Physics

Manual
