Maximum number of samples: 40+
Measured parameters: pF
Measuring range: 0 - 2.0 pF
Power supply: line voltage
Reading accuracy: 0.01 bar
Sample specification: undisturbed
Sample stored in: ring
Package size: 1 pallet of 120 x 80 x 125 cm, 141 kg and 1 pallet of 146 x 62 x 110 cm, 209 kg
Voltage: 110 - 240VAC
Description
For research of water availability in the soil for plants and trees, the determination of the moisture characteristic (pF-curve or soil retention curve) of the soil is essential.

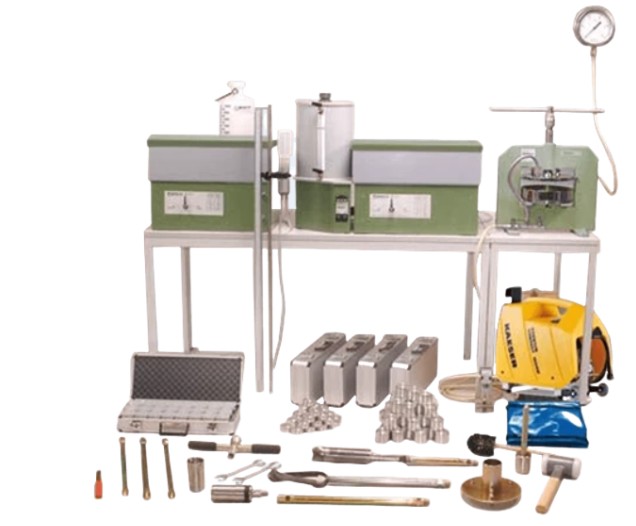

This full set consists of:
Sandbox for pF-determination 0 - 2.0 for a maximum of 40 soil sample rings
Sand-/kaolin box for pF-determination 2.0 - 2.7 for a maximum of 40 soil sample rings
Membrane apparatus for pF-determination 3.0 - 4.2 for a maximum of 15 soil sample rings, including compressor and accessories
Soil sampling set with rings of 53 mm in diameter
Additional soil sample (copecky) rings
Soil sample (transport) boxes
With this set you have the instruments needed to take undisturbed samples in the field and determine the complete soil retention (pF) curve. But, please note that a precision balance and drying oven are also required for testing in the lab.
Up to 40 samples can be tested per sandbox, which allows for large scale research and the determination of a representative and effective average.
A functioning sandbox can be used for several years if the sand/ sand-kaolin is kept inundated with water after each test. A copper ring helps to prevent algal growth.
