Eijkelkamp 07.10.SZ Soil sampling ring kit - model Z103 (100 mm, 30 mm, 235 ml)

Applications:

The samples taken with this set, with a diameter of 103 millimetres, are especially for use with the Compression test (08.67) and Shear/compression test apparatus (08.68)

Thông số kĩ thuật

Sample diameter: 100 mm

Sample length: 30 mm

Sample volume: 235 ml

Sample specification: Undisturbed

Sample stored in: Container

Sample position: Vertical

Package size: 117 x 27 x 33 cm

Weight: 31 kg

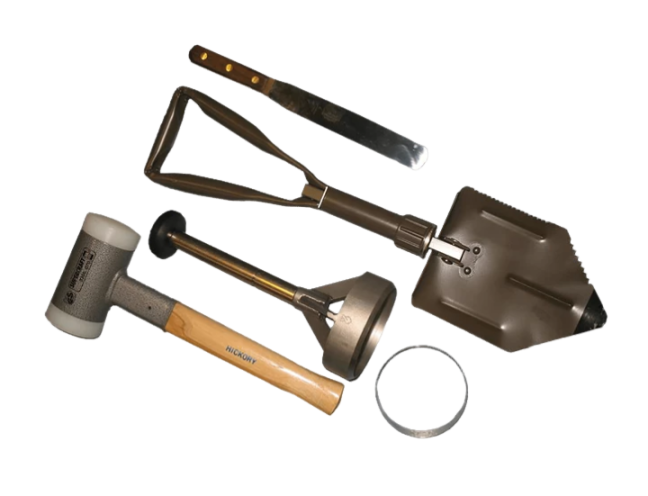

Set contains:

Sample rings (10 pieces), diameter 103x100 millimetres, height 30 millimetres

Ring caps (20 pieces)

Hammering/sample ring holder device

Hammer with nylon caps, impact absorbing design

Ruler with cutting edge

Description:

The physical properties of soils are largely determined in the laboratory. Such studies usually require undisturbed soil samples, preferably with uniform dimensions. To meet these requirements, soil samples are taken in rings of a known volume and diameter. Royal Eijkelkamp soil sample rings are made of seamless stainless-steel tube, smooth inside and out for as less as possible friction. The bottom of the ring has a cutting edge. The precise made dimensions and thus the volume content of the ring is exact, which makes it highly suitable for laboratory studies. The sampler is suitable for hammering.

Features:

Sample ring kit model Z103 is used for soil sample rings with a diameter of 103 millimetres. Soil sample ring kits are used for a variety of tests, including bulk density determination of soil.

Undisturbed sample

Suitable for hammering

Soil sample rings Ø 103 millimetres

For use with the compression test (08.67) & shear/compression test apparatus (08.68)
