Applications
Geotechnical soil research
Trafficability or load bearing capacity research (e.g., construction sites)
Checking artificial compaction of the soil
Research the growing conditions of plants in the soil
Tracing compacted layers in the soil (plow sole)
Specifications
Angle of cone: 60°
Cone surface range: 1, 2, 3.3, 5 cm²
Maximum force: 5000 @ 1 cm² kPa
Maximum measuring depth: 80 cm
Measured parameters: Penetration resistance
Measuring accuracy: < +/- 4%
Measuring range: 0...5000 kPa
Product material: Stainless steel, iron, other material
Reading accuracy: 2%
Registration type: Manual
Package size: 117 x 29 x 23 cm
Weight: 15 kg
Description

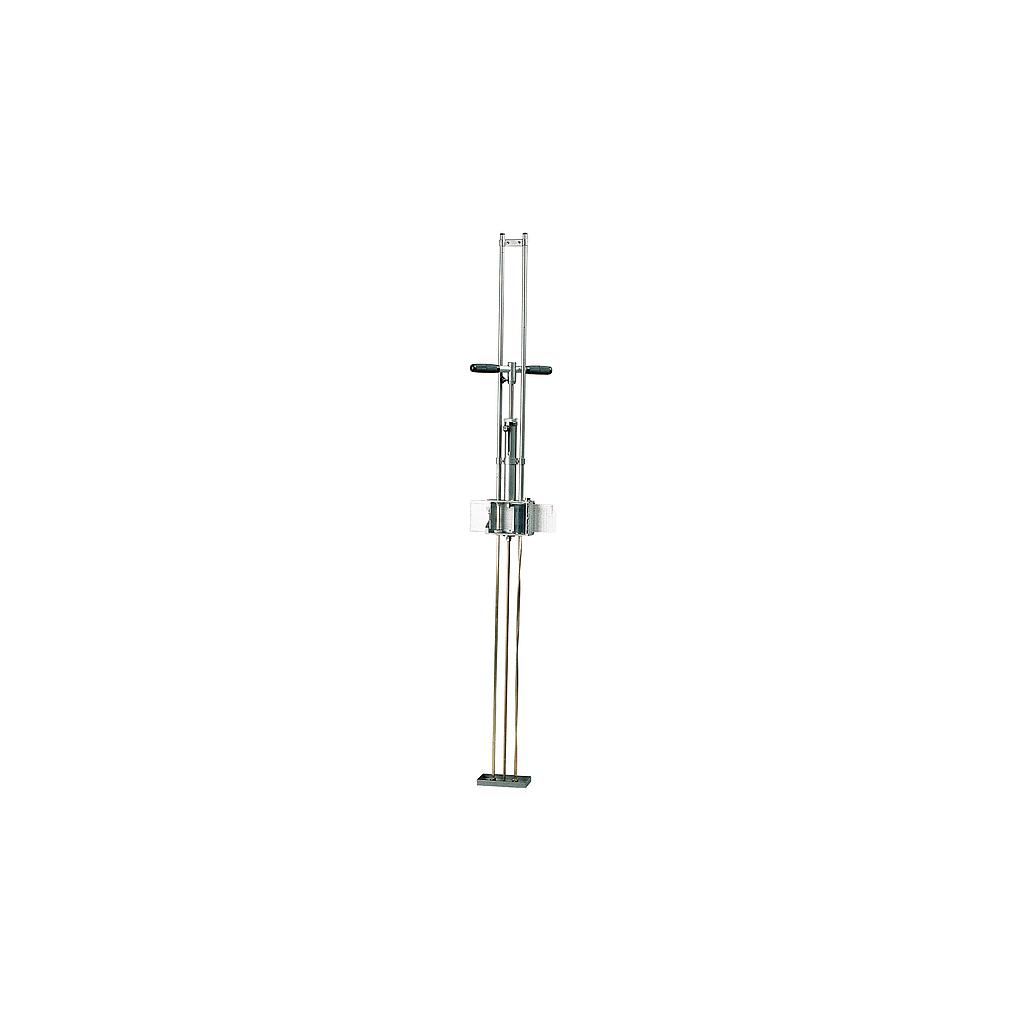

The Penetrograph is a unique devise for determination of the penetration resistance (bearing capacity) and compaction of a soil. This device is unique, because it writes the measured forces in relation to the depth directly as a graph on a chart. The measuring range of the penetrograph goes up to 5000 kN/m2 (= 5 MPa) and the device is suitable for measurements up to a depth of 80 centimetre.
The standard set includes various penetration cones, probe rods and special pens and graph paper for the recorder. The entire set, including spare parts, manual, cone check and tools, is supplied in an aluminium carrying and transport case. Each penetrograph is provided with a quality test report. Our penetrograph is suitable for many applications.
Set contains
Penetrograph
Different cones (4 pieces)
Types of probe rods (2 pieces)
Registration chards
Recording pens
Accessories
Transport case
Manual
