Eijkelkamp 05.07 Soil column cylinder auger set (6950 ml)

Applications

Structure description of the soil (even the very thin layers)

Root investigation to gain insight in the possibilities for a root system considering depth and intensity

Determination of contents and density of soil using almost undisturbed samples

Researching the moisture content and the concentration of dissolved substances in long running field studies

Studies of the flow behaviour of water and dissolved substances e.g., soils where very preferential moisture transport occurs

Archaeological research

Specifications

Hammer: Atlas Copco Cobra TT

Connection: RD32 screw thread

Maximum root thickness: 20 mm

Maximum sample depth: 1 m

Power supply: Gasoline

Product material: Steel, PVC, other material

Rod or cable operated: Rod

Sample diameter: 84 mm

Sample length: 1 m

Sample specification: Undisturbed

Sample volume: 6950 ml

Sampler position: Vertical

Package size: 145 x 62 x 72 cm

Weight: 101 kg

Description

The soil column cylinder auger has been developed to take undisturbed soil samples. This allows a fast insight in the build-up of the soil profile, the possibilities for a root system, and more. The greater the insight in these matters, the more effective the soil can be treated and fertilised.

With the soil column cylinder auger system it is possible to take almost undisturbed samples with a length of 1 metre and a diameter of 90 millimetres, without digging a profile pit.

The auger is hammered into the soil by a gasoline driven hammer (Cobra TT), which can be replaced by an electric Hammer on request. The soil auger has a side cover that is easily removable, for checking and/or for sub-sampling of the sample taken.

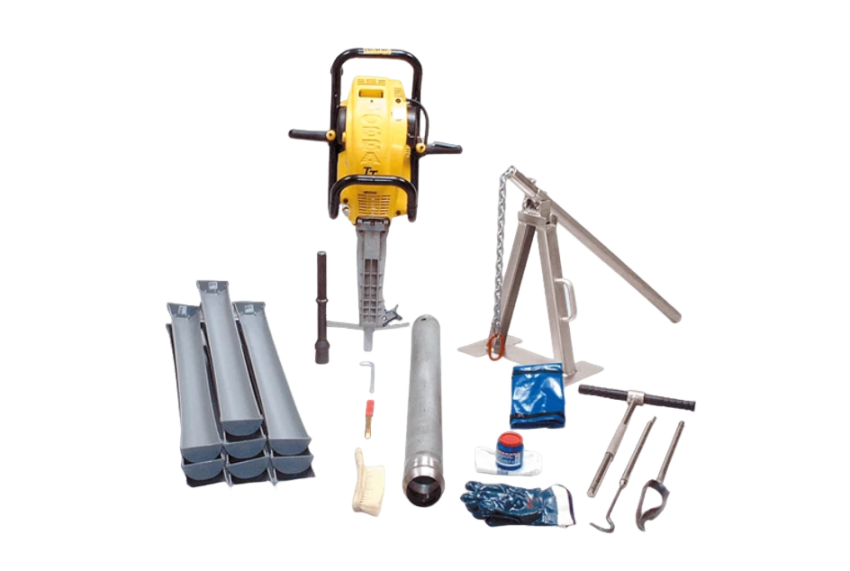

This set contains

Cobra TT hammer in wooden transport box

Striking pen Cobra – RD32

Soil column cylinder auger

Steel lifting jack

Lever with chain, length 1 metre

Hook for extracting cutting shoe + accessories

Sample gutters (10 pieces)

Maintenance kit with gloves

Carrying bag for field equipment
