Eijkelkamp 04.34 Ekman grab set (>10m)

Applications

Soft sediment (free from debris and plant growth) sampling

Specifications

Maximum sample depth: > 10 m

Product material: Stainless steel, iron, other material

Rod or Cable length: 30 m

Rod or cable operated: Cable

Sample specification: Semi-disturbed

Sample volume: 3.3l

Package size: 56 x 22 x 40 cm

Weight: 7 kg

Description

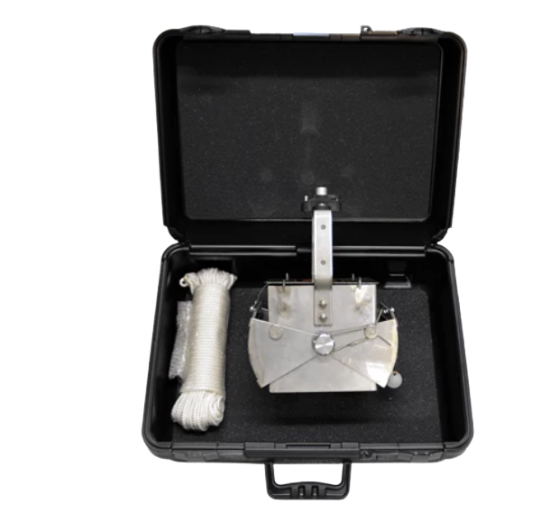

This grab is intended for use in soft sediment and has a capacity of 3.5 litres. Its dimensions are 152 x 152 x 152 millimetres and the entire instrument is made of inert stainless steel. Thanks to the overlapping flaps, nothing will be lost of the sample.

For the use of the Ekman grab with rod in shallow water, a rod of 1.5 meter length is also available. The Ekman Grab set is equipped with a drop-weight system, so that sampling can be carried out at any depth.

Two thin hinging flaps are open while the grab is lowered. The spring loaded flaps close when a drop-weight is dropped (cable operated) or a button is pressed (rod operated). Samples can, therefore, also be taken from very soft top layers. The pressure of the sample prevents much loss of material. Nevertheless, please note that small stones or stalks may prevent the grab from closing properly.

Manual
