Eijkelkamp 04.11 Akkerman core sampler set (50 m, 67mm, 120kg)

Applications:

Soil sampling above and below groundwater table

Geotechnical soil research

Undisturbed sampling

Specification

Maximum sample depth: 50 m

Power supply: Manual

Product material: Stainless steel, iron, other material

Rod or cable operated: Cable

Sample diameter: 67 mm

Sample length: 40 cm

Sample specification: Undisturbed

Sample stored in: Tube

Sampler position: Vertical

Package size: 130 x 42 x 24 cm

Weight: 120 kg

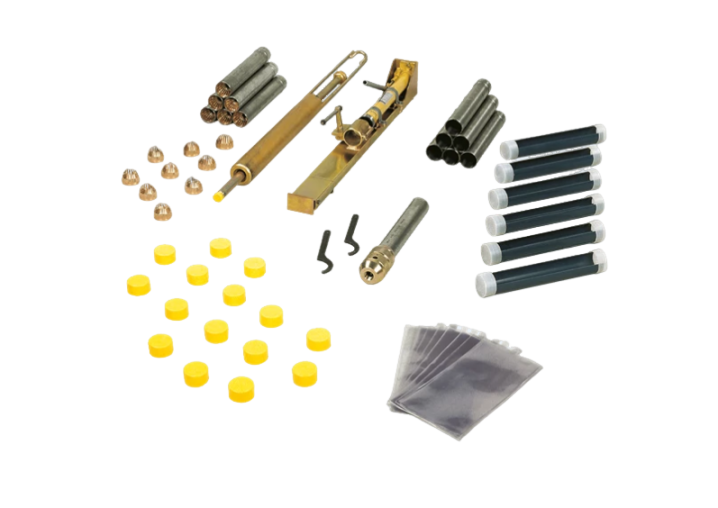

Set contains:

Akkerman core sampler

Falling hammer

Various sampling tubes with and without core catcher

Plastic sampling liner

Sampling tubes

PE covers

Hydraulic extruder for the sampling tubes

Description:

Using the Akkerman core sampler, samples are taken in stainless steel sampling tubes in auger holes or casing tubes (above as well as under the groundwater level, casing tubes with minimal diameter 100 millimetre) up to a maximum depth of 50 metres.

The Akkerman core sampler is used in combination with a tripod and hand winch. The sampling tube is beaten into the soil using a falling hammer. After sampling the sampling tube can be sealed off with the PE covers. A sample on the split sample tube can be prepared for transport by covering it with another split tube and sealing the seams and closing both ends with covers.

The hydraulic extruder can only be used to remove the sample from the ordinary sampling tubes. The tubes with core catcher can not be emptied using this extruder. The sample must be removed by tapping or by pulling the plastic liner in which the sample is bedded if the liner had been placed in the core catcher before sampling.

Features:

The Akkerman core sampler set is used for taking large undisturbed soil samples in sample tubes with a diameter of 70 x 67 millimetres and a length of 44 centimetres. Using this sampler, samples are taken in stainless steel sampling tubes in auger holes or casing tubes (above as well as under the groundwater level) up to a maximum depth of 50 metres.

Durable stainless steel coring tubes

Strong hydraulic extruder

Ball valve system for best sample retrieval

Large high impact hammer

Liners available for tubes with core catchers
