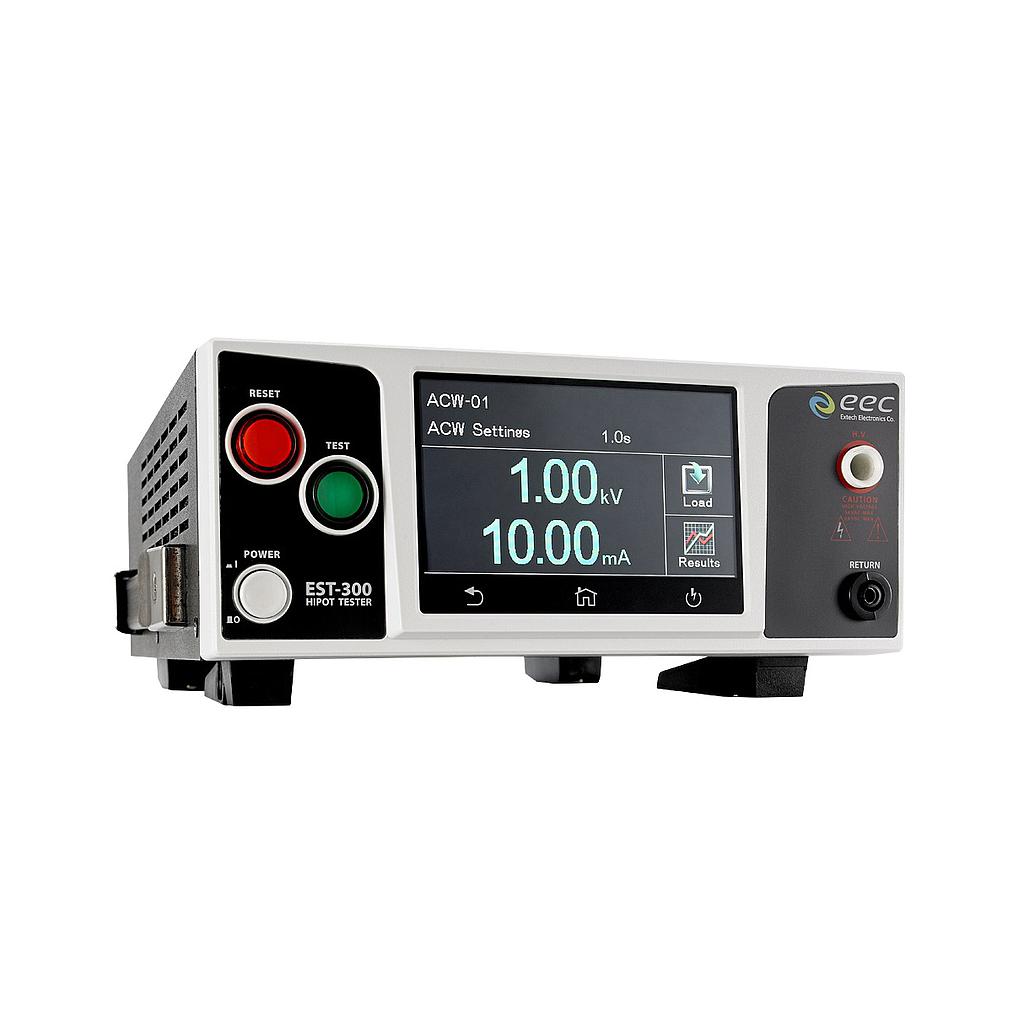

EEC EST-310 Hipot Tester

REPLACE MODEL: Associated Research Hypot 3805

INPUT RATING

• Voltage (AC): 100 - 120Vac / 200 - 240Vac±10% Auto Range

• Apparent Power: 360 VA

• Frequency: 50/60 Hz ± 5%

AC WITHSTAND VOLTAGE

• Output Rating: 5KVAC / 20mA

• Output Voltage Range: 0 - 5.00 kVac

• Voltage Resolution: 0.01 kVac

• Voltage Accuracy: (1% of setting + 0.5% of Range)

• Current Measurement Range: 0.000 - 20.00 mA

• Current Resolution: 0.001 / 0.01 mA

• Current Accuracy: (1% of reading + 1% of Range)

GENERAL

• Interface: USB, PLC Remote

• Display: 4.3" Color Display (Touch Panel)

• Environment: 0 - 40°C, 20 - 80%RH

• Dimension (W x H x D), mm: 215 x 88.1 x 300

• Net Weight: 5.46 Kg
