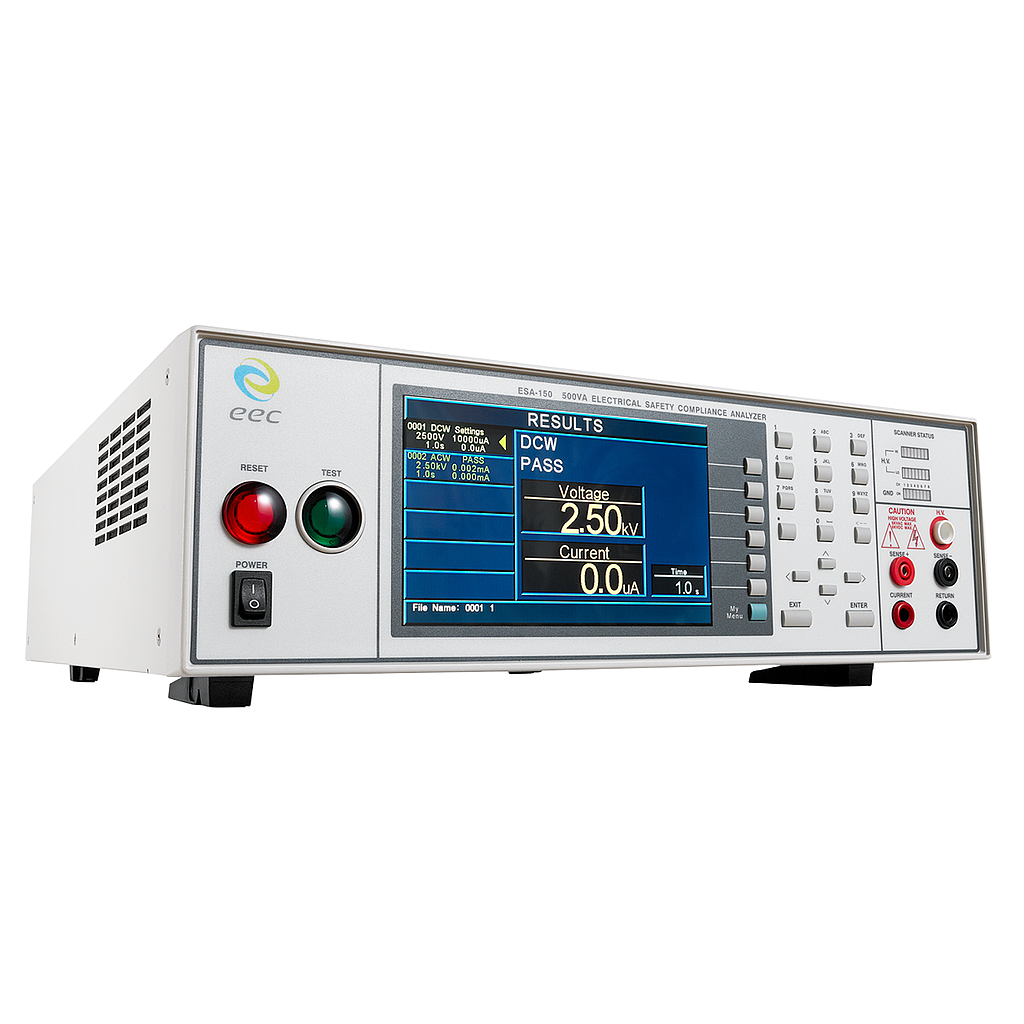

EEC ESA-140A Electrical Safety Compliance Analyzer

REPLACE MODEL: Associated Research OMNIA II 8206

INPUT

• Voltage (AC): 115/230V ± 15% Auto Range

• Frequency: 50/60 Hz ± 5%

AC WITHSTAND VOLTAGE

• Output Rating: 5kV/50mA

• Output Voltage Range: 0-5.00kV

• Voltage Resolution: 0.01 kV

• Voltage Accuracy: (1% of setting + 0.5% of Range)

• Current Measurement Range (Total): 0.000-50.00mA

• Current Resolution (Total): 0.001/0.01mA

• Current Accuracy (Total): ±(2% of reading + 2 counts)

DC WITHSTAND VOLTAGE

• Output Rating: 6kV/20mA

• Output Voltage Range: 0-6.00kV

• Voltage Resolution: 0.01kV

• Voltage Accuracy: ±(1.5% of setting + 5V)

• Current Measurement Range: 0.0μA-20.00mA

• Current Resolution: 0.1μA/0.001mA/0.01mA

• Current Accuracy: ±(2% of reading + 2 counts)

INSULATION RESISTANCE

• Output Rating: 1kV/50GΩ

• Output Voltage Range: 30-1000V

• Voltage Resolution: 1 V

• Voltage Accuracy: ±(1.5% of setting + 2 counts)

• Resistance Measurement Range: 0.050MΩ-50GΩ

• Resistance Resolution: 0.001/0.01/0.1/1MΩ

• Resistance Accuracy:

0.050-999.9MΩ under 30-499V: ±(7% of reading+2 counts)

0.050-999.9MΩ under 500-1kV: ±(2% of reading+2 counts)

1G-9.999GΩ under 500-1kV: ±(5% of reading+2 counts)

10G-50GΩ under 500-1kV: ±(15% of reading+2 counts)

GROUND BOND

• Output Rating: 40 A/600mΩ/8V

• Output Current: 1.00-40.00A

• Current Resolution: 0.01A

• Current Accuracy: ±(2% of setting + 2 counts)

• Output voltage: 3.00-8.00V

• Voltage Resolution: 0.01V

• Voltage Accuracy: ±(2% of setting + 3 counts)

CONTINUITY

• Output Rating (DC): 0.1A for 0-10.00Ω, 0.01A for 10.1-100.0Ω, 0.001A for 101-1kΩ, 0.0001A for 1.001-10kΩ, 0.1A is Max.

• Resistance Offset: 0.00-10.00Ω

• Resistance Offset Resolution: 0.01Ω

• Resistance Offset Accuracy: ±(1% of reading + 3 counts)

• Resistance Measurement Range: 0.00-10kΩ

• Resistance Resolution: 0.01/0.1/1Ω

• Resistance Accuracy:

0.00-10.00Ω/10.1-100.0Ω: ±(1 % of reading + 3 counts)

101-1000Ω/1001-10000Ω: ±(1 % of reading + 10 counts)

TOUCH CURRENT

• Leakage Current Range (RMS): 0.0μA-10.00mA

• Leakage Current Resolution (RMS):

0.0-999.9μA: 0.1μA

1000-8399μA: 1μA

8.40-10.00mA: 0.01mA

• Leakage Current Accuracy (RMS) (AC + DC):

DC: ±(2% of reading + 3 counts)2

15Hz < f <100kHz: ±(2% of reading + 3 counts)2

100kHz < f < 1MHz: ±(5% of reading) (> 10.0μA)

RUN TEST

Power Measurement Range: 0 - 4500W

Power Accuracy: ± (5% of reading + 3 counts)

Power Factor: 0.000 - 1.000

Power Factor Accuracy: ± (8% of reading + 2 counts)

Voltage Measurement Range(AC): 0.0 - 277.0V , 1ø

Voltage Accuracy: ± (1.5% of reading + 2 counts)

Current Measurement Range(AC): 0.00 - 16.00A

Current Accuracy: ± (2% of reading + 2 counts)

Leakage Current Measurement Range: 0.00 - 10.00 mA

Leakage Current Accuracy: ± (2% of reading + 2 counts)

MD (L-G) Resistor: 2kΩ ± 1%

GENERAL

• Interface: Standard USB & RS232, Optional Ethernet, GPIB

• Display: 800 x 480 resolution digital TFT LCD/Contrast 9 Levels 1-9

• Dimension (W x H x D), mm: 430 × 133 × 500

• Weight: 36 Kg
