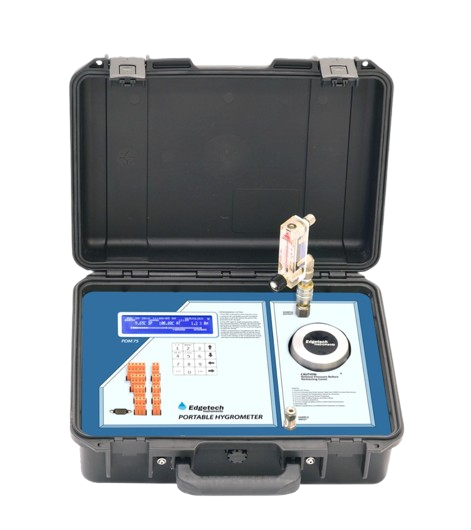

Edgetech Instruments PDM75-X3SF Portable, Precision Chilled Mirror Hygrometer (+70°C ~ -65°C)

Sensor Type: Primary method, chemically resistant, chilled mirror dew/frost point sensor

Sensor Construction: Wetted materials: X3SF High Efficiency: 316 stainless steel, Teflon, Viton seals

Mirror: Chrome (standard), Platinum (optional)

Mirror Access: Easy access flip-top

Measuring Range:

Dew/Frost Point Temperature: X3SF High Efficiency: 90°C depression, +70°C to -65°C

Cooling Requirement: No liquid cooling required

Custom Ranges: Available (consult factory)

Accuracy: Dew/Frost Point: ±0.36°F (±0.20°C)

General:

Display: 8-line LCD, graphic data display, backlit, displays 3 parameters simultaneously

Operating Temperature: 32°F to 122°F (0°C to 50°C)

Sample Connection: 1/4” compression fitting, configured for positive pressure sample gas (standard)

Sample Flow Rate: 0.5 to 5 SCFH with integral flow meter

Sample Pressure: 0 to 150 psig (higher pressures available, consult factory)

Power: 90-230 VAC ±10%, 50 to 400Hz

Analog Outputs: 0 to 5 Vdc, 4 to 20 mA, 0 to 10 Vdc, or 0 to 20 mA (user scalable, to drive peripheral devices)

Weight: 24 lb.

Datasheet

Applications

Air Separators

Checking Accuracy of Polymer and Metal Oxide Probes

Compressed Air

Engine Test Cells

Furnace

General Purpose

Government Agencies

High Accuracy

Metrology

Pharmaceuticals

Plastics

Power and Energy

R&D Test & Measurement

Semiconductor
