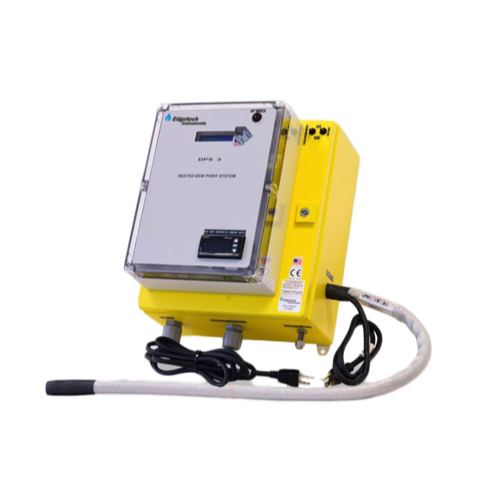

Edgetech Instruments DPS3 Heated Dewpoint System (20°C ~ 99°C; -35°C ~ 95°C)

Primary Method Chilled Mirror Sensors: available with HTS2 Two-Stage Chilled Mirror.

Heated System Temperature Range: 20°C to 99°C (68°F to 210°F).

Dew/Frost Point Measurement Range: -35°C to 95°C (-31°F to 203°F).

Measurement Accuracy: ±0.2°C (±0.4°F).

Repeatability: ±0.05°C (0.9°F).

User Programmable Temperature Controller: Standard.

Display Parameters: Dew/Frost Point Temperature, System Set Point Temperature, System Actual Temperature.

Two Alarm Relays: Standard.

Analog Outputs: Selectable 4 to 20 mA, 0 to 5 Vdc, or 0 to 10 Vdc.

Serial RS-232 Output: Standard.

Sample Connection: ¼ inch compression fitting.

Sample Pressure: 0 to 200 psig.

Heated Sample Hose: 3 ft. included.

AC Power: 100 or 240 Vac, 50/60Hz, 250 W, specify voltage.

Mirror Material: Standard: Chrome; Optional: Platinum.

Sample Flow: 0.5 to 5.0 SCFH (0.25 to 2.5 l/min).

Automatic Balance Control: Standard.

Integral Adjustable Sample Flowmeter: Included.

Datasheet

Applications

Food and Beverage

Furnace

Semiconductor
