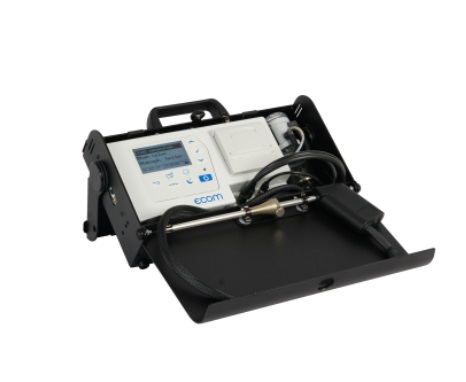

Ecom CL2 Combustion analyzer (32-1832° F, ±0.5%)

- Measurements:

+ Oxygen (O2):

Range: 0-21% vol

Accuracy: ± 0.2% vol

Resolution: 0.1% vol

+ Carbon Monoxide (CO):

Range: 0-4,000 ppm

Accuracy: ±2%

Resolution: 1 ppm

+ Nitric Oxide (NO):

Range: 0-5,000 ppm

Accuracy: ±5%

Resolution: 1 ppm

+ Gas Temperature:

Range: 32-1832° F

Accuracy: ±0.5%

+ Ambient Temperature:

Range: 40-122° F

Accuracy: ±1° F

Resolution: 1° F

+ Draft / Pressure:

Range: ±40” H2O

Accuracy: ±2%

Resolution: 0.004” H2O

+ O2 Correction: 0-20% O2

+ Carbon Dioxide: 0-CO2 max

+ Efficiency (Eta): 1-99.9%

+ Excess Air (Lambda): 2-Infinity

+ Losses 0-99.9%

- Electrical:

Battery life: 3-5 hour, 6V 3.3Ah Li-ion

Pump: Flow rate up to 1.0 lpm

Display: Backlit with 8 line display

- Dimensions: 13.4” x 9” x 3.7”

7’ sample line with 9” probe

6.6 lbs. weight
