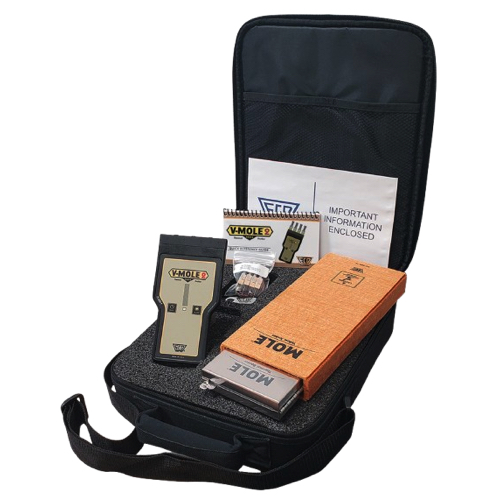

ECD V-M.O.L.E. 2 Thermal Profiling For Printed Circuit Board (PCB) Assembly (-200°C ~ 1,200°C; 100 samples/second ~ 10 minutes/sample)

Standard mini-thermocouples: Type K, T, J, E, N, R, S & B

%RH: ECD VaporWATCH® RH sensor

Interface: USB 2.0 compliant (charge;upload;download)

Cable: USB type A to USB-C, 1m (3’)

Sampling interval: 100 samples/second to 10 minutes/sample

Data points: 16 million or 200 data runs (whichever comes first

Accuracy: +/- 0.5°C (0.9°F)

Resolution: 0.0056°C (0.01°F)*

Noise rejection: 50-60 Hz*

*>= 0.05 seconds/sample

Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)

Battery: LiPo (lithium polymer ion) - rechargeable, 1100mAh

Charger input current: 60 ma via USB interface

Dimensions (L x W x H):

Profiler: 165.1mm (6.5”) x 89mm (3.5”) x 9.41mm (0.37”)

Barrier: 253.9mm (10.0”) x 104mm (4.1”) x 26.9mm (1.06”)

Yellow Jacket: 286.5mm (11.28”) x 115mm (4.53”) x 32.5 (1.28”)

Weight:

Profiler: 0.182 kg (6.4 oz)

Barrier: 0.861 kg (30.4 oz)

Yellow Jacket: 0.07 kg (2.4 oz)

Operational range (profiler): -40°C to +85°C (-40°F to 185°F)

Humidity: 0-85% RH (non condensing)
