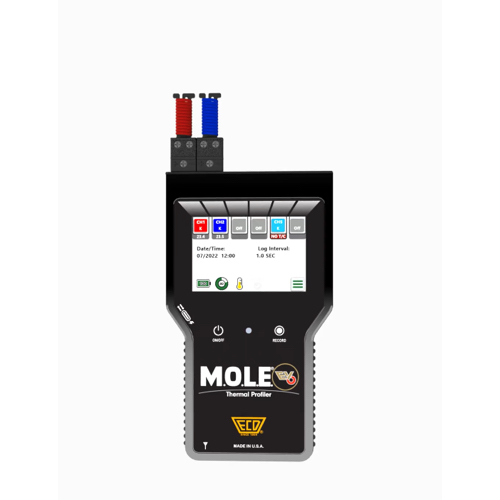

ECD M.O.L.E. EV6 Thermal Profiling For Printed Circuit Board (PCB) Assembly (-200°C ~ 1,200°C; 100 samples/second ~ 10 minutes/sample)

Display: PS TFT Display; 240 x 400 Dot Matrix

Thermocouple Sensors (Up To 6):

ECD Micro-Thermocouples: Type K*, T, J, E, N, R, S & B

%RH: ECD VaporWATCH® RH Sensor

Data Acquisition:

Sampling Interval: 100 samples/second to 10 minutes/sample

Data points: 16 million (2.6 million at 6 channels) or 200 data runs (whichever comes first)

Accuracy: +/- 0.5°C (0.9°F)

Resolution: 0.0056°C (0.01°F)*

Noise Rejection: 50-60 hrz*

Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)

Power:

Battery: Lipo (Lithium Polymer ion) – Rechargeable, 1100mAh

Physical:

Dimensions (L x W x H):

Profiler: 152.4mm (6”) x 89mm (3.5”) x 9.41mm (0.37”)

Barrier: 253.9mm (10.0”) x 104mm (4.1”) x 26.9mm (1.06”)

Yellow Jacket: 264.6mm (10.4”) x 115mm (4.53”) x 32.5 (1.28”)

Weight:

Profiler: 0.204 kg (7.2 oz)

Barrier: 0.861 kg (30.4 oz)

Yellow Jacket: 0.07 kg (2.4 oz)

Operational range (Profiler): -40°C to +80°C (-40°F to 176°F)

Humidity: 0-85% RH (Non Condensing)

Communications:

Interface: USB 2.0 Compliant (charge; upload; download)

Cable: USB Type A to USB-C, 1m (3’)

Datasheet
