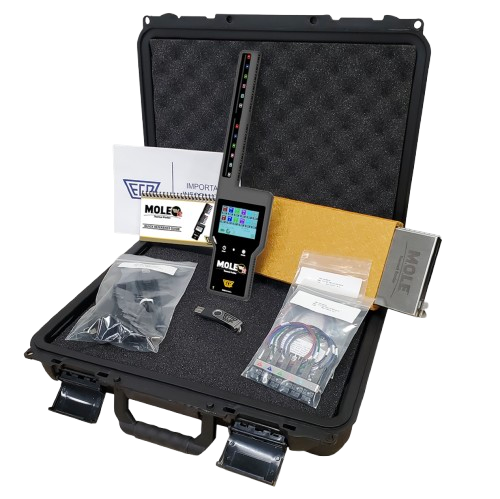

ECD M.O.L.E. EV12 Thermal Profiling For Printed Circuit Board (PCB) Assembly (-200°C ~ 1,200°C; 50 samples/second ~ 10 minutes/sample)

Display: PS TFT Display; 240 x 400 Dot Matrix

Thermocouple Sensors (Up To 12):

ECD micro-thermocouples: Type K*, T, J, E, N, R, S & B

%RH: ECD VaporWATCH® RH Sensor

*Type K: Special Limits of error ±1.1 or ±0.004*T per ASTM E230/E230M-12, IEC 60584:2013 and ISA–MC96.1–1982.

Data Acquisition:

Sampling Interval: 50 samples/second to 10 minutes/sample

Data points: 16 million or 200 data runs (whichever comes first)

Accuracy: +/- 0.5°C (0.9°F)

Resolution: 0.0056°C (0.01°F)*

Noise Rejection: 50-60 hrz*

Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)

*>= 0.05 seconds/sample

Power:

Battery: LiPo (Lithium Polymer ion) – Rechargeable, 1100mAh

Charge Protection: optimized for lithium polymer

Charger input current: 60 ma via USB Interface

Physical:

Dimensions (L x W x H):

Profiler: 350.8mm (13.81”) x 89mm (3.5”) x 9.41mm (0.37”)

Barrier: 412.8mm (16.25”) x 104mm (4.1”) x 26.9mm (1.06”)

Yellow Jacket: 423.4mm (16.7”) x 115mm (4.53”) x 32.5 (1.28”)

Weight:

Profiler: 0.386 kg (13.6 oz)

Barrier: 1.202 kg (2.65 lb)

Yellow Jacket: 1.113 kg (4.0 oz)

Operational range (Profiler): -40°C to +80°C (-40°F to 176°F)

Humidity: 0-85% RH (Non Condensing)

Communications:

Interface: USB 2.0 Compliant (charge; upload; download)

Cable: USB Type A to USB-C, 1m (3’)
