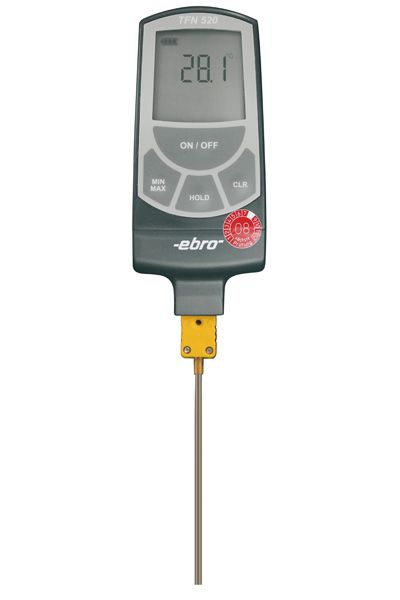

EBRO TFN 520-LEMO Thermometer with Lemo connection (1CH, Type K,J,E,T, LEMO connection)

Sensor connection: LEMO size 0

Channels: 1 external (sensor/channel…)

Protection class: IP 52

Weight: approx. 90g

Accuracy @ 25 °C

Type K: -100 °C to +249.9 °C ±0.3 °C

Type J: -50 °C to +190 °C ±0.3 °C

Type T: -50 °C to +220 °C ±0.3 °C

Type E: -50 °C to +150 °C ±0.3 °C

Rest of range 0.5% of reading

Protection class: IP 40

Dimensions: 115 x 54 x 22 mm

Resolution

Type K 0.1 °C (-99.9 °C … +250 °C), 1 °C for the remaining measurement range

Type J 0.1 °C (-99.9 °C … +190 °C), 1 °C for the remaining measurement range

Type T 0.1 °C (-99.9 °C … +220 °C), 1 °C for the remaining measurement range

Type E 0.1 °C (-99.9 °C … +150 °C), 1 °C for the remaining measurement range

Certificate: Factory calibration certificate

Measured variables: temperature

Interval: 0.5-15s

Measuring range

Type K -200 °C to +1200 °C

Type J -100 °C to +800 °C

Type T -50 °C to +300 °C

Type E -100 °C to +600 °C

Storage temperature: -25°C...+60 °C
