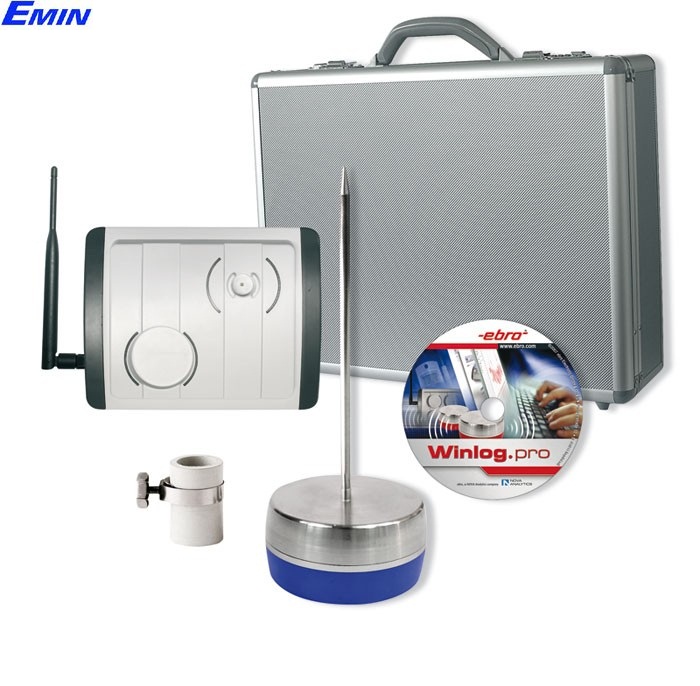

The set contains:
1x Temperature data logger EBI 100-T230, probe length 50 mm
1 x EBI-DA can adapter set
1 x Software Winlog.pro
1 x Interface IF 100-1
1 x Case EBI TAK ALU
Operating instructions
Technical Data
Type EBI 100-T23X
Measuring range: -40°C up to +150°C
Accuracy: ±0,3°
Resolution: 0,1°C
Measuring intervall: min 1s , max. 24 h
Memory: 27.000 measured values
Operating temperature.: -40°C bis +150°C
Storage temperature: -40°C ... +70°C
Sensor: Pt 1000, external, axial, 1 channel
Measuring mode:
- Endless measurement immediately
- Start-/Stop measurement
- Measure immediately until end of memory
- Measurement from start temperature
Dimensions: 48 x 48 x 24 mm
Weight: approx. 70 g
Battery: Lithium cell 1/2 AA (exchangeable)
Housing: Stainless steel (V4A) / PEEK
Protection class: IP 68
> Completely waterproof
> Programming and evaluation with PC
> Exchangeable battery
> Factory calibration certificate
Double click on above image to view full picture
The set contains:
1x Temperature data logger EBI 100-T230, probe length 50 mm
1 x EBI-DA can adapter set
1 x Software Winlog.pro
1 x Interface IF 100-1
1 x Case EBI TAK ALU
Operating instructions
Technical Data
Type EBI 100-T23X
Measuring range: -40°C up to +150°C
Accuracy: ±0,3°
Resolution: 0,1°C
Measuring intervall: min 1s , max. 24 h
Memory: 27.000 measured values
Operating temperature.: -40°C bis +150°C
Storage temperature: -40°C ... +70°C
Sensor: Pt 1000, external, axial, 1 channel
Measuring mode:
- Endless measurement immediately
- Start-/Stop measurement
- Measure immediately until end of memory
- Measurement from start temperature
Dimensions: 48 x 48 x 24 mm
Weight: approx. 70 g
Battery: Lithium cell 1/2 AA (exchangeable)
Housing: Stainless steel (V4A) / PEEK
Protection class: IP 68
> Completely waterproof
> Programming and evaluation with PC
> Exchangeable battery
> Factory calibration certificate
