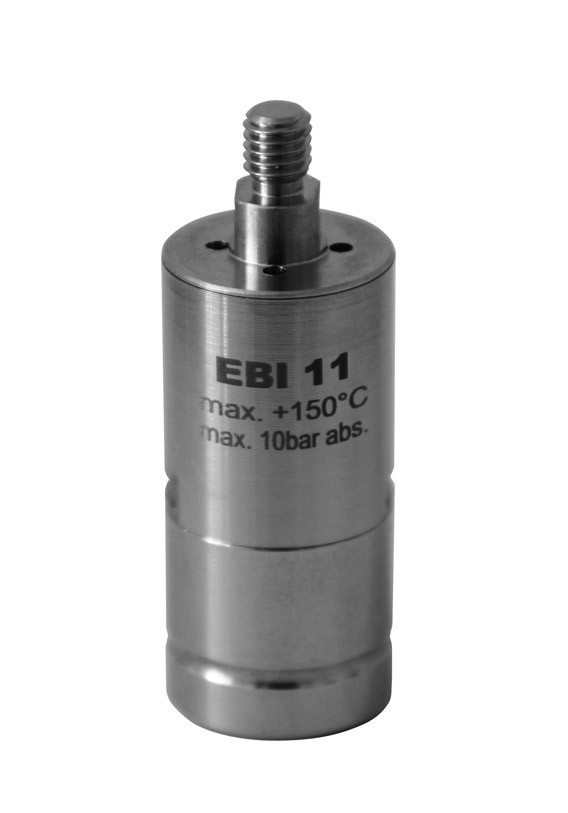

EBRO EBI 11-TP110 (1340-6297) Mini-Pressure/ Temperature Logger (0-150 °C; 1-10.000 mbar)

Product Description

• Temperature and pressure monitoring under cramped conditions

• High accuracy

• Completely waterproof

• Temperature resistant up to +150 °C

• Space-saving (small dimensions)

• Field-replaceable battery

Technical Data

Measuring range:0 °C...+150 °C 1 mbar...10.000 mbar

Accuracy:± 0.1 °C ± 15 mbar ( 0 mbar...4000 mbar) ± 20 mbar (4000 mbar...10000 mbar)

Resolution:±0.01 °C ± 1 mbar

Operating Temperature: 0 °C...+150 °C

Storage temperature: 0°C...+60°C

Memory: 2 x 7.500 measurement values

Sensor: Pt 1000

Sample Rate: 1s...24h

Measured variables: Pressure

IP Rating: IP68

Battery: 2 x 3V

Dimensions: ø 16,5 mm x 47 mm

Weight: Approx. 45 g

Certificate: Factory calibration certificate

Options

- AL 114: Adapter Set for EBI-11; Part No. 1340-6298

- Interface Set SI 1300; 4 fold Interface IF 300 for EBI 11; Part No. 1340-6063

- Interface Set SI 2100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6064

- AL 115: Bottle Adapter-Set for EBI-11; Part No. 1340-6299

- AL 113: Battery Exchange Set for EBI 11; Part No. 1100-0120

- Interface Set SI 3300: 4 fold Interface IF 300 for EBI 11; Part No. 1340-6069

-Interface Set SI 1100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6061

Software

Winlog.pro Software-; Part No. 1340-2355

Winlog.validation Software; Part No. 1340-2394

Winlog.med Software: Software (Standard-Software for the CSSD); Part No. 1340-2363
