Manufacturer: EBRO
Model: EBI 16
Part No.: 1340-6697
Origin: Germany
Warranty: 12 months
Product Description

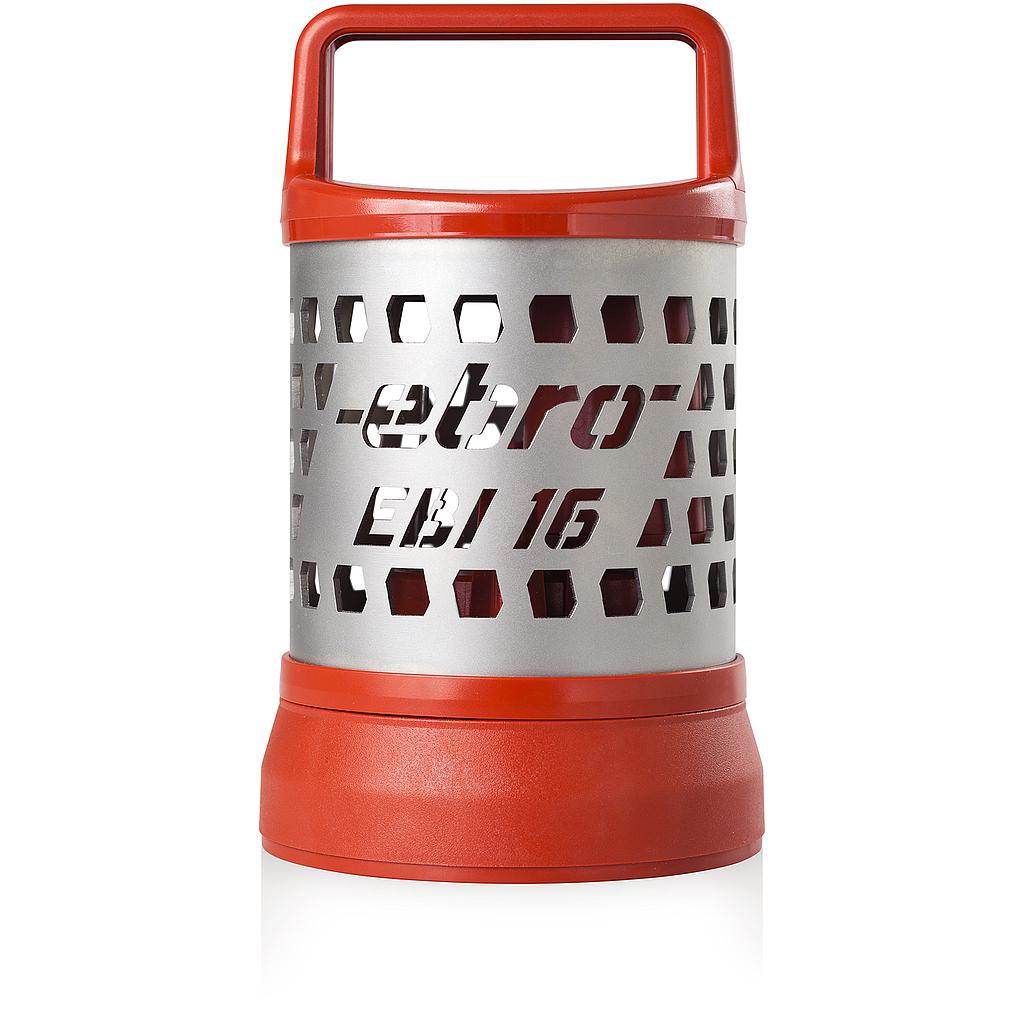

Together with the evaluation software Winlog.med the new EBI 16 data logger forms an easy to use and very reliable electronic measurement system. With it a comprehensive routine control of steam sterilizers can be performed using an alternative Electronic Bowie Dick Test according to DIN EN ISO 11140-4. In addition to the review of the steam penetration, the relevant sterilization parameters are controlled.
• Reliable: clear, reproducible measurement results
• Accurate: high-resolution graphical cycle display
• Secure: digital data recording and storage
• Easy: to use and evaluate
Bowie Dick Test
The EBI 16 delivers clear results during daily checks of the air evacuation test and steam penetration test according to DIN EN 17665 and DIN EN 285.
Early warning system
The EBI 16 provides early identification of possible failures in steam-sterilizers. Even small quantities of residual air that doesn`t lead to a failed Bowie Dick Test yet, are detected.
Vacuum check
The EBI 16 allows a reasonable vacuum check also for sterilizers without pressure display according to DIN EN 285.
Verification of sterilization parameters
The EBI 16 checks the sterilization parameters such as compensation time, hold time, sterilization temperature and sterilization time according to DIN EN 285.“
Technical data
Measuring range: 1°C ... +150°, 0 mbar ... 4.000 mbar
Accuracy: ± 0.1°C, ± 15 mbar
Resolution: 0.01°C, 1 mbar
Memory: 6750 measurement values
Measured variables: temperature, pressure
IP Rating: IP68
Dimensions: 90 mm x 150 mm
Weight: 500 g
Certificate: Factory calibration certificate
Software
Winlog.med Software: Software (Standard-Software for the CSSD); Part No. 1340-2363
Winlog.validation Software; Part No. 1340-2394
