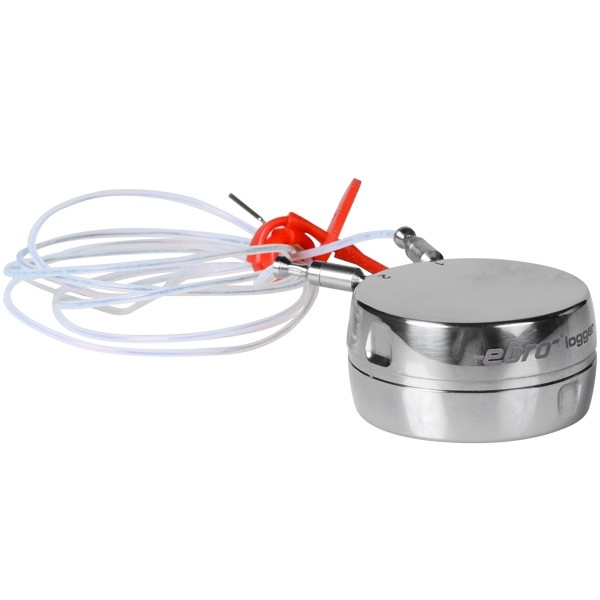

EBRO EBI 12-T490 (1340-6634) Temperature Data Logger (-20 °C~+150 °C)

Manufacturer: EBRO

Model: EBI 12-T490

Part No.: 1340-6634

Origin: Germany

Warranty: 12 months

Product Description

Application sample Steam sterilizer; Process monitoring, F-value and A0 value calculation.

• with wire probe

• according ISO EN 17665, EN 285, pr DIN

58929 / DIN EN 13060 und ISO 15883

• Needle length 600 mm, ø 1,2 mm

Measuring range:-20 °C … +150 °C

Accuracy:± 0,2 °C (-20 °C … 0 °C) ± 0,1 °C (0 °C ... +120 °C) ± 0,05 °C (+120 °C … +140 °C) ± 0,1 °C (+140 °C … +150 °C)

Resolution:0,01 °C

Operating Temperature:-20 °C … +150 °C

Storage temperature:0 °C ... +125 °C

Memory:2 x 50,000 measurement values

Sensor:Pt 1000, class A

Sample Rate:250 msec ... 24 h

Probe:4 external temperature sensors, radial, flexible

Measured variables:Temperature

IP Rating:IP68

Battery:Lithium battery (3,6 V), user replaceable

Dimensions:(Ø x H) 48 mm x 24 mm

Weight:approx. 110g

Certificate:Factory calibration certificate

Options

- Interface Set SI 2100 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6064

- Interface Set SI 1200: 4-fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6062

- AL 104: SET pin cho EBI12 + EBI 16; Part No. 1100-0118

- AL 121 dụng cụ mở; Part No. 1100-0131

- AL 285 Logger Check; Part No. 1248-0285

- Interface Set SI 1100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6061

- Interface Set SI 3200 4 fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6068

Software

Winlog.validation Software; Part No. 1340-2394
